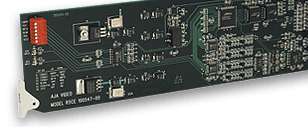

AJA Video Systems Inc R5CE
1x4 SDI DA/SDI Converter, Card

OUR PART #:  R5CE

Universal Monitoring SDI DA The R5CE is an SDI distribution amplifier and universal monitoring D/A converter.
Learn More
Our Price: $590.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc R5CE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Universal Monitoring SDI DA

The R5CE is an SDI distribution amplifier and universal monitoring D/A converter. The R5CE provides four equalized and re-clocked SDI outputs along with four analog monitoring outputs. The four analog outputs can be configured to a wide variety of formats including NTSC/PAL, YC (S-Video), YPbPr (SMPTE, EBU-N10), Betacam or RGB. A PLL jitter filter/memory reduces the effects of SD jitter on the analog outputs. An exclusive feature on the R5CE is a 10- to 8-bit dithering circuit that removes contouring in the analog outputs. Additionally, the R5CE fits the AJA R-Series rack mount frames, and is compatible with other standard racks.

Specifications

Inputs

SDI (SMPTE 259M), 1x BNC

Outputs

YPbPr - SMPTE, EBU-N10, Betacam, RGB, 3x BNC

Or NTSC, PAL, 3x BNC

Or NTSC/PAL and YC, 3x BNC

SDI, Re-Clocking, 4x BNC

User Controls

External Dipswitch

Video Format

Pedestal

Vertical/Horizontal Blanking

Power

Rackmount Frame for R-Series, 2RU, 10-Slot, 100W, Forced Air Cooling, Single Power Supply
