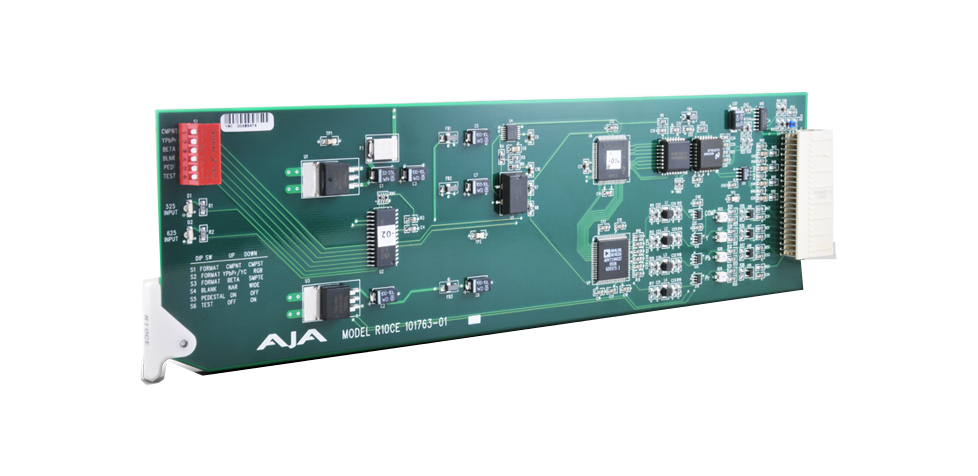

AJA Video Systems Inc R10CE
1 x 4 SDI DA And Analog Converter Card

OUR PART #:  R10CE

The AJA R10CE is an SDI distribution amplifier and universal monitoring D/A converter.
Learn More
Our Price: $695.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc R10CE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA R10CE is an SDI distribution amplifier and universal monitoring D/A converter. The R10CE provides four equalized and re-clocked SDI outputs along with four analog monitoring outputs. The four analog outputs can be configured to a wide variety of formats including NTSC/PAL, YC (S-Video), YPbPr (SMPTE, EBU-N10), Betacam or RGB. A PLL jitter filter/memory reduces the effects of SD jitter on the analog outputs. The R10CE fits the AJA R-Series rack mount frames, and is compatible with other standard racks.

AJA R10CE Features:

  • Universal Monitoring SDI DA
  • SDI Input
  • (4) Re-Clocked SDI Outputs
  • (4) 10-bit Component / Composite Analog Outputs
  • YPbPr, Betacam, or RGB component formats
  • PLL Jitter Filter
  • Built-in test pattern

AJA R10CE Specifications:

  • Inputs: SDI (SMPTE 259M), (1) BNC
  • Outputs:
    • YPbPr - SMPTE, EBU-N10, Betacam, RGB, 3x BNC
    • Or NTSC, PAL, 3x BNC
    • Or NTSC/PAL and YC, 3x BNC
    • SDI, Re-Clocking, 4x BNC
    • Composite/YC
  • User Controls:
    • External Dipswitch
    • Video Format
    • Pedestal
    • Vertical/Horizontal Blanking
  • Power: 4 Watts
