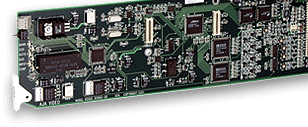

AJA Video Systems Inc R20CE
Universal D/A Converter, Card

OUR PART #:  R20CE

Universal D/A Converter The R20CE SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to component and composite video formats simultaneously.
Learn More
Our Price: $890.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc R20CE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Universal D/A Converter

The R20CE SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to component and composite video formats simultaneously. The 4 analog outputs are user configurable to NTSC/PAL, YC (S-Video), YPbPr (SMPTE, EBU-N10), Betacam, or RGB. The component and composite outputs are completely independent including optimum chroma filtering for each and independent pedestal configuration. The R20CE also features an exclusive PLL jitter filter/memory to reduce the effects of SDI jitter on the output analog video. This feature, along with the precision 4x oversampled D/A filter, provides the highest quality analog outputs - including very low phase noise in composite outputs. The optional FSG (Frame Sync/Genlock) Module allows genlock to an external reference with full timing adjustment. Without the FSG Module, the reference input provides color frame timing. The R20CE fits the AJA R-Series Rack Mount Frames, as well as other common industry frames.

Excellent Quality 10-Bit Universal D/A Conversion

Full 10-Bit Data Path, 4x Oversampling

SDI Input, 2 Re-Clocked, Loop-Thru SDI Outputs

Simultaneous Component & Composite Analog Outputs

YPbPr, Betacam, or RGB Component Formats

NTSC or PAL Composite Formats

Digital Noise Reduction

Optional Frame Synchronizer Allows Genlock to Reference, Full Timing Adjustment

Specifications

Inputs

SDI (SMPTE 259M), 1x BNC

Reference

Passive Loop

Outputs

Simultaneous Component and Composite Output

YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC,

PAL, YC (S-Video), 3x BNC

NTSC/PAL or Sync, 1x BNC

Re-Clocked Loop-Thru SDI, 2x BNC

D/A Converters

10-bits, 4x Oversampling

Clock Jitter Filtering to 2.5Hz

Frequency Response

Y +/- .15dB to 5.5Mhz

C +/- .15dB to 2.5Mhz (Component)

C +/- .15dB to 1.3Mhz (Composite)

Less Than .5% K Factor (2T)

User Controls

Output Video Format

Pedestal On/Off

Narrow/Wide Blanking

Digital Noise Reduction

Output Timing Adj. (w/Frame Sync Option)

Size

Fits AJA R-Series Frames

Compatible With Leitch® 6800 Series Frames

Power

7 Watts (8 Watts w/frame Sync Option)
