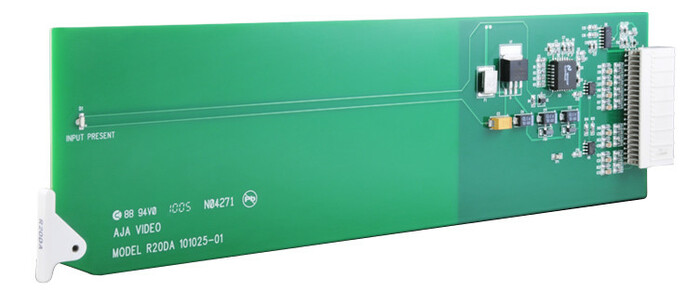

AJA R20DA SDI Distribution Amplifier

The AJA R20DA is a multi-format, 1x8 SDI Distribution Amplifier. The SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the R20DA to automatically adapt to 143, 177, 270 or 360 Mb SDI inputs.

AJA R20DA Specifications:

• Inputs: SDI (SMPTE 259M), BNC
• Outputs:
  • SDI (SMPTE 259M), 8x BNC
  • Re-Clocked, Equalize
• Size:
  • Fits AJA R-Series Frames
  • Compatible With Leitch® 6800 Series Frames
• Power: 3 Watts
