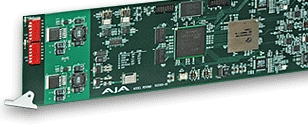

AJA Video Systems Inc RD10MD
Dual HD-SDI/SDI Downconverter card

OUR PART #:  RD10MD2

Dual HD to SD Downconverter The RD10MD is a 10-bit broadcast-quality dual HD down converter. Channels 1 and 2 are fully independent.
Learn More
Our Price: $1,650.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc RD10MD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Dual HD to SD Downconverter

The RD10MD is a 10-bit broadcast-quality dual HD down converter. Channels 1 and 2 are fully independent. Channel 1 has 2 re-clocked HD/SD-SDI outputs, and channel 2 has 1. Both channel 1 and 2 have 2 down-converted outputs, which can be independently configured as SDI or composite analog. All HD formats are supported, including 24p/psf with 3:2 pulldown. The SD output can be formatted for either 4:3 or 16:9 monitors. For 4:3 monitors, both letterbox and crop modes are supported. The RD10MD is also dual-rate (HD/SD) and will support SDI inputs. The RD10MD is compatible with AJA's FR1 or FR2 frames.

Dual independent channel HD to SD down conversion

Re-clocking HD-SDI/SDI input loop outputs

Multi-standard HD-SDI or SDI input

SDI and composite analog outputs

3/2 pulldown for 23.98/24 Hz p/psf inputs

Full 10-bit data path, multi-point interpolation

Configurable for 16:9 or 4:3 monitors

Letterbox and crop modes

Specifications

Formats

HD: 1080i 50/59.94/60 Hz

1080p/psf 23.98/24/25/29.97/30 Hz

720p 23.98/24/25/29.97/30/50/60 Hz

Inputs

HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC

Outputs

Each channel has two outputs configurable for either SDI (SMPTE 259M, 10-bit) or analog composite NTSC/PAL, 2x BNC

Channel 1 has two re-clocked loop-through outputs, 2x BNC

Channel 2 has one re-clocked loop-through output, 1 BNC

Downconversion

Multi-point interpolation, 10-bit processing

3.2 conversion for 23.98/24p/psf inputs

User Controls

External dipswitch

Output video format

4:3/16:9 monitor select

Letterbox/crop

Pedestal (output)

4:3 safe-zone graticule overlay

Size

Fits AJA R-series frames

Power

7 watts
