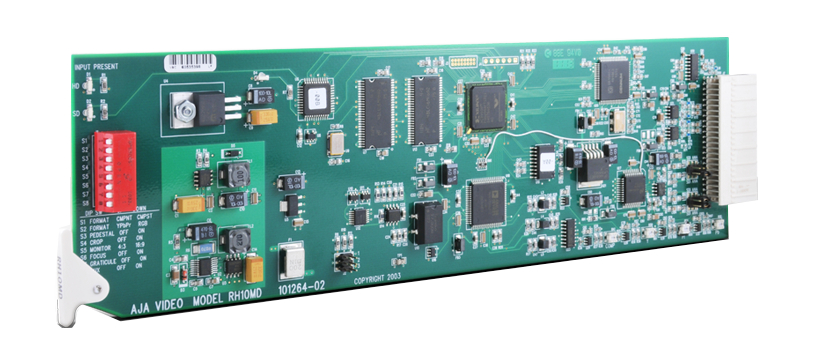

AJA Video Systems Inc RH10MD
HD-SDI/SDI Downconverter Card

OUR PART #:  RH10MD

The AJA RH10MD is a 10-bit broadcast-quality HD down-converter and HD-SDI/SDI distribution amplifer. There are 4 re-clocked HD-SDI/SDI outputs and four down-converted SD outputs.
Learn More
Our Price: $1,350.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc RH10MD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA RH10MD is a 10-bit broadcast-quality HD down-converter and HD-SDI/SDI distribution amplifer. There are 4 re-clocked HD-SDI/SDI outputs and four down-converted SD outputs. The SD outputs can be individually configured as analog or SDI - analog can be component or composite. All HD formats are supported including 24p/psf with 3:2 pulldown. The SD output can be formatted for either 4:3 or 16:9 monitors. For 4:3 monitors both Letterbox and Crop modes are supported. The RH10MD is also dual-rate (HD/SD) and will support SDI inputs. 4 Ch AES embedded audio is passed through to the SDI outputs. The RH10MD is compatible with AJA's FR1 or FR2 frames.

AJA RH10MD Features:

  • Re-clocking 1x4 HD-SDI/SDI DA
  • Multi-Standard HD-SDI or SDI Input
  • SDI and Component / Composite Analog Outputs
  • 3/2 Pulldown for 23.98 / 24 Hz p / psf inputs
  • Full 10-bit Data Path, Multi-point Interpolation
  • Configurable for 16:9 or 4:3 Monitors
  • Letterbox and Crop Modes
  • 4:3 Safe-Zone Graticule

AJA RH10MD Specifications:

  • Formats:
    • HD: 1080i 50/59.94/60 Hz
    • 1080p/psf 23.98/24/25/29.97/30 Hz
    • 720p 23.98/24/25/29.97/30/50/60 Hz
  • Inputs: HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC
  • Outputs:
    • SDI, SMPTE 259M, 10-bit, BNC
    • YPbPr - SMPTE, EBU-N10, Betacam
    • RGB, NTSC, PAL, Y/C (S-Video), 10-bit
    • 3 x BNC
  • Down-conversion:
  • Multi-point interpolation, 10-bit processing
  • 3: 2 conversion for 23.98 / 24 p / psf inputs
  • User Controls:
  • External Dipswitch
  • Output Video Format
  • 4 : 3 / 16 : 9 monitor select
  • Letterbox / crop
  • Pedestal (output)
  • 4 : 3 safe-zone graticule overlay
  • Size: Fits AJA R-Series Frames
  • Power: 5 Watts
