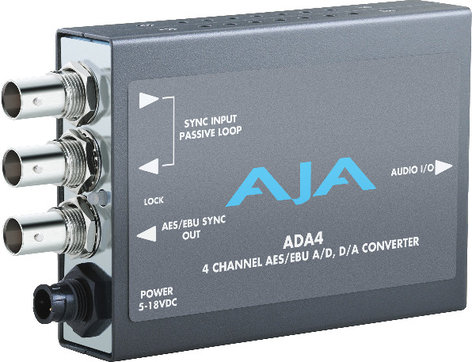

AJA Video Systems Inc ADA4
4 Channel Bi-Directional Audio A/D & D/A Mini Converter with Power Supply

OUR PART #:  ADA4

The AJA ADA4 4-Channel Bi-Directional Audio A/D & D/A Converter can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A...
Learn More
Our Price: $390.00
Write the first review.
AJA Video Systems Inc ADA4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA ADA4 4-Channel Bi-Directional Audio A/D & D/A Converter can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A, or as an AES synchronizer. The ADA4 can accept an AES11, wordclock or video sync/color black reference input for synchronization. Reference input and synchronization are automatic. Audio levels are configurable via dipswitch control.

AJA Video Systems Inc. ADA4 Specifications:

  • Analog Audio I/O: Balanced, XLR, one channel per XLR connector
  • AES Audio I/O: Balanced 110 ohm, XLR, two channels per XLR connector
  • Analog Audio Levels: +24dBu (SMPTE RP155), +18dBu (EBU R68), +10dBV (consumer +12.2 dBu)
  • Audio Converters: 24 bit, 48/96 KHz
  • User Controls: External Dipswitch
  • Channel 1/2: A/D, D/A
  • Channel 3/4: A/D, D/A
  • Audio Level: Pro/Consumer
  • Audio Level: High/Low
  • Reference Loop 75 Ohm (unterminated). HD/SD Sync, AES-11, or Wordclock (48/96 KHz)
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
  • Power: +5-18VDC, 3 watts. Requires Power Supply (Included)
