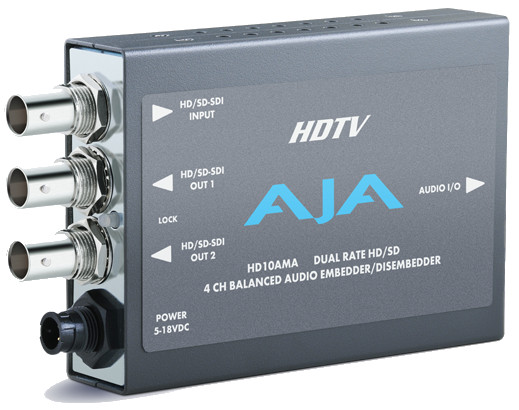

AJA Video Systems Inc HD10AMA
Dual Rate 4 Channel SD/HD-SDI Analog Audio Embedder/Disembedder with XLR Breakout Cable and Power Supply

OUR PART #:  HD10AMA

The AJA HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional, providing 4 outputs.
Learn More
Our Price: $795.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10AMA
Qty:
In Stock

Similar Products

The AJA HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional, providing 4 outputs. The Embedder is user-selectable on a channel pair basis to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.

AJA HD10AMA Features:

  • 4-Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
  • 5-18VDC Power (power supply included)

AJA HD10AMA Specifications:

  • Formats:
    • HD SMPTE 292/296M
    • SD SMPTE 259M
    • (Automatic Configuration)
  • Video Input: HD-SDI or SDI BNC
  • Video Outputs: HD-SDI or SDI BNC x2
  • Audio Inputs: 4x Balanced Analog Audio, XLR
  • Audio Outputs: 4x Balanced Analog Audio, XLR
  • Audio Levels: See "Output Level Selection Matrix" Image Above.
  • Audio Converters: 24 bit
  • Embedded Audio: SMPTE 272M/299M, 24 bit, 48KHz synchronous
  • User Controls:
    • External Dipswitch
    • Embedder on/off, Ch pairs 1/2 - 3/4
    • Input group select 1-4
    • Output Group Select 1-4
    • Audio Level: Pro/Consumer, High/Lo
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
  • Power: +5-18VDC, 5 watts. Requires Power Supply (Included)
