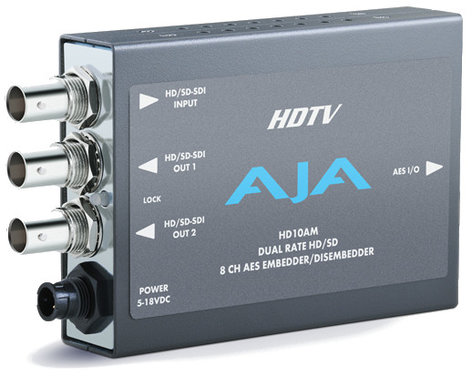

AJA Video Systems Inc HD10AM
HD/SD 8 Channel AES Embedder/Disembedder with Power Supply

OUR PART #:  HD10AM

The AJA HD10AM is a dual-rate 8-channel AES audio Embedder/Disembedder. The Disembedder is always functional providing 4 AES outputs.
Learn More
Our Price: $795.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10AM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD10AM is a dual-rate 8-channel AES audio Embedder/Disembedder. The Disembedder is always functional providing 4 AES outputs. The Embedder is user-selectable on a channel pair basis to either "pass" SDI input audio or to embed input AES audio from the breakout cable. AES inputs are sample rate-converted to a 48KHz rate synchronous to the video input. The HD10AM automatically detects and configures to the input video standard.

AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder Features:

  • Dual-rate HD-SDI/SDI Embedder/Disembedder
  • 8 Channel AES I/O
  • Supplied breakout cables for balanced AES - XLR connectors
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
  • 5-18VDC Power (power supply included)

AJA HD10AM HD/SD 8 Channel AES Embedder/Disembedder Specifications:

  • Formats:
    • HD SMPTE 292/296M
    • SD SMPTE 259M
    • Automatic Configuration
  • Video Input: HD-SDI or SDI BNC
  • Video Outputs: Follows input, 2 x BNC
  • Audio Inputs: 4x AES 110 ohm XLR
  • Audio Outputs: 4x AES 110 ohm XLR
  • AES Audio: SMPTE 272M/299M, 48KHz synchronous
  • User Controls:
    • External Dipswitch
    • Embedder on/off, Ch pairs 1/2 - 7/8
    • Input group select 1/2, 3/4
    • Output Group Select 1/2, 3/4
    • SRC Bypas
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
