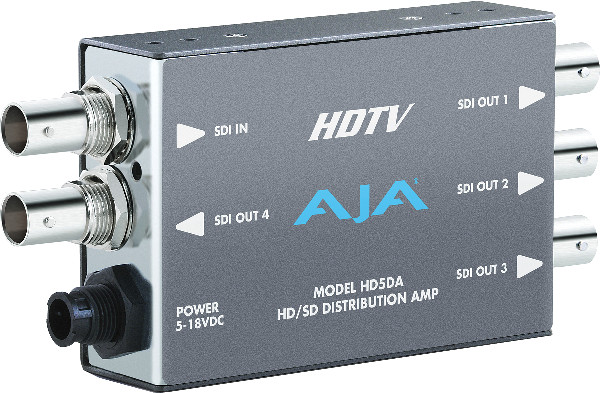

AJA Video Systems Inc HD5DA
HD/SD-SDI Distribution Amplifier/Repeater with Power Supply

OUR PART #:  HD5DA

The AJA HD5DA is a miniature, cost-effective, 1x4 HD-SDI distribution amplifier/repeater that features four separately buffered HD-SDI outputs...
Learn More
Our Price: $195.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD5DA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD5DA is a miniature, cost-effective, 1x4 HD-SDI distribution amplifier/repeater that features four separately buffered HD-SDI outputs, the HD5DA provides automatic input cable equalization to 100 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5 Gb.

AJA HD5DA Features:

  • Compact HD-SDI/SDI Distribution
  • Four Separately Buffered Serial HD-SDI/SDI Outputs
  • Auto Equalization
  • Acts as a Low Cost Repeater
  • Automatic multi-standard
  • Miniature Size

AJA HD5DA Specifications:

  • Formats: 1.5Gb, 143, 177, 270, 360 Mb, Auto Select
  • Inputs: 1 HD-SDI, SDI (SMPTE 292/296), 1x BNC
  • Outputs:
    • 4 HD-SDI, SDI, 4x BNC
    • Equalizing
    • Return Loss
    • >15dB-270Mhz (Input and Output)
  • Power: 5VDC Regulated, 2.5 Watts (power supply included)
  • Dimensions: 5.8" x 2.4" x 1" (131 x 61 x 25 mm)
