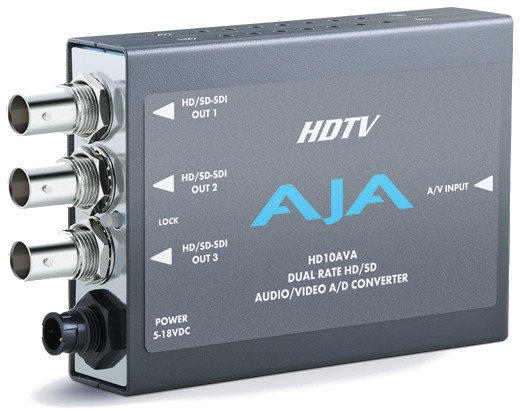

AJA Video Systems Inc HD10AVA
Analog Video and Audio to SD/HD-SDI A/D Mini Converter with Power Supply

OUR PART #:  HD10AVA

The AJA HD10AVA analog audio and video to SD/HD-SDI A/D mini converter automatically detects the video input format and embeds the audio inputs in the SDI/HD-SDI outputs.
Learn More
Our Price: $695.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10AVA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA HD10AVA analog audio and video to SD/HD-SDI A/D mini converter automatically detects the video input format and embeds the audio inputs in the SDI/HD-SDI outputs. The HD10AVA is useful for adding an SDI/HD-SDI audio/video output to tape decks or any professional video equipment with analog outputs. The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SDI-HD-SDI on BNCs.

AJA HD10AVA Analog Video and Audio to SD/HD-SDI A/D Mini Converter Specifications:

  • Formats:
    • 1080i 50/59.94/60 Hz
    • 1080psf 23.98/24/25 Hz
    • 1035i 50/59.94/60 Hz
    • 720p 50/59.94/60 H
  • Video Inputs:
    • HD component YPbPr, (SMPTE-274), BNC
    • SD component/composite/YC (S Video), BNC
  • Audio Inputs: 4-channel balanced, XLR
  • Outputs: SDI, HD-SDI, SMPTE-259/292/296, 3 x BNC
  • Video A/D: 12 bits
  • Audio A/D: 24 bits, 48 KHz
  • Audio Levels: +10dBu, +12dBu, +18dBu, +24dBu, full-scale digital
  • User Controls:
    • External dipswitch
    • Component/composite (SD)
    • Composite/YC (SD)
    • Pedestal present (on/off) (SD)
    • Audio input level
  • Power: +5 to 18V DC, 5 Watts, Power Supply Required (included)
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
