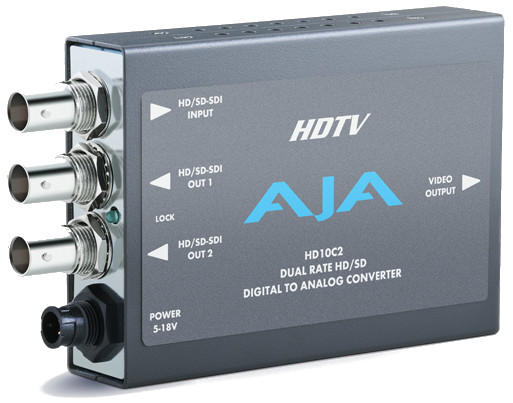

AJA Video Systems Inc HD10C2
HD-SDI/SDI to Analog Mini Converter with 2 EQ'd HD-SDI Outputs and Power Supply

OUR PART #:  HD10C2

The AJAJ HD10C2 is a high-quality dual-rate 10-bit HD D/A converter works with both HD-SDI and SDI inputs.
Learn More
Our Price: $595.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HD10C2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJAJ HD10C2 is a high-quality dual-rate 10-bit HD D/A converter works with both HD-SDI and SDI inputs. For HD-SDI inputs, the HD10C2 outputs full bandwidth HD component or VGA-style RGBHV video. For SDI inputs, component or composite SD outputs are supported. When connected to a multi-format monitor like the Sony 20L5, the HD10C2 will automatically provide an image from almost any HD or SD input format. The HD10C2 also features 2 equalized HD-SDI outputs.

AJA HD10C2 HD-SDI/SDI to Analog Mini Converter Specifications:

  • Formats:
    • HD: 1080i @ 50/59.94/60 Hz
    • 1035i @ 50/50.94/60 Hz
    • 1080psf @ 23.98/24/25/29.97/30 (displayed as Interlaced)
    • 720p @ 59.94/60 Hz
    • SD: 525 59.94Hz, 625 50Hz
    • Automatic Configuratio
  • Inputs:
    • HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC
    • Input Equalization: 125 Meter 1694 Cabl
  • Outputs:
    • HD: YPbPr, RGB (SMPTE-274)
    • SD: YPbPr (SMPTE/N10, Beta┬« RGB, Y/C, NTSC/PAL)
    • 13W3 wideband analog output connector (cable supplied)
    • HD-SDI/SDI equalized loop-thru, 2 x BNC
  • Sync:
    • HD: Tri-level or Bi-level, H/V Drive
    • SD: normal SD syn
  • Frequency Response:
    • HD: Y +0, -.5db to 30 MHz, C +/- .25db to 13 MHz
    • SD: Y +/- .25db to 5.5 MHz, C +/- .25db to 2.5 MH
  • User Controls:
    • External Dipswitch
    • YPbPr/RGB
    • Component/Composite (SD)
    • SD Pedestal
    • SD Blanking
    • HD 4:3 Graticule
    • SD NTSC/NTSC-J
    • Sync on Video on/of
  • Power: +5-18VDC Regulated, 4 Watts (power supply included)
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
