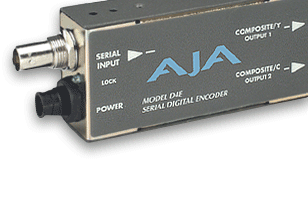

AJA Video Systems Inc D4E
SDI to 2x NTSC/PAL or Y/C Encoder

OUR PART #:  D4E

AJA's D4E SDI Encoder provides the lowest cost all-digital conversion of SDI to analog NTSC or PAL. The D4E is useful for monitoring, level and phase checking, dubbing etc.
Learn More
Our Price: $250.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc D4E
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA's D4E SDI Encoder provides the lowest cost all-digital conversion of SDI to analog NTSC or PAL. The D4E is useful for monitoring, level and phase checking, dubbing etc. The D4E automatically adapts to NTSC or PAL video standards and outputs analog NTSC (525 line inputs) or PAL (625 line inputs). Pedestal and narrow/wide H/V blanking are user configurable via dip-switches. The D4E encodes the full dynamic range of input video. Levels below black and above white are not clipped.

AJA D4E Specifications:

  • Inputs: SDI (SMPTE 259M), 1x BNC
  • Outputs:
    • NTSC, PAL, 2x BNC
    • Or NTSC/PAL YC (S-Video), 2x BN
  • User Controls:
    • Video Format
    • Pedestal
    • H/V Blanking
    • Test Pattern (Requires valid SDI Input
  • Power: 5VDC Regulated, 2 Watts, Power Supply Required (included)
  • Size: 5.1" x 1.8" x 1" (131 x 44 x 25 mm)
