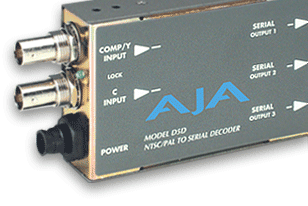

AJA Video Systems Inc D5D
A/D Converter, 3-line Adaptive Comb, NTSC/PAL to SDI

OUR PART #:  D5D

The D5D Decoder provides low cost, all digital decoding of analog NTSC/PAL or Y/C (S-Video) to SDI.
Learn More
Our Price: $595.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc D5D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The D5D Decoder provides low cost, all digital decoding of analog NTSC/PAL or Y/C (S-Video) to SDI. The D5D is useful for bringing video from time-base corrected analog composite equipment into a serial digital environment. The D5D features a crystal PLL jitter filter/memory to reduce jitter in the SDI outputs. The D5D decodes the full dynamic range of input video. Values below black and above white are not clipped. In the NTSC mode, the removal of the 7.5 IRE pedestal can be enabled by external dip-switch selection.

Features

  • Analog Composite/YC to SDI Conversion
  • Selectable 2 or 3 Line Adaptive Comb Filter
  • Three SDI Outputs
  • Crystal PLL Jitter Filter
  • Automatically Configures to NTSC/PAL
  • Dip-Switch Selectable Pedestal
  • Low Cost

Specifications

Inputs

  • NTSC/PAL, YC (S Video), 2 x BNC

Outputs

  • SDI (SMPTE 259M), 3 x BNC

Frequency Response

  • +/- 0.25dB to 5Mhz
  • - <1% 2T K Factor (Y)
  • - <1.5% Differential Gain
  • - <1.5 Degree Differential Phase

User Controls

  • External Dipswitch
  • Pedestal In NTSC Mode
  • Narrow/Wide Blanking
  • 2 or 3 Line Comb

Power

  • 5VDC Regulated, 3.5 Watts

Size

  • 5.1" x 2.4" x 1" (131 x 61 x 25mm)
