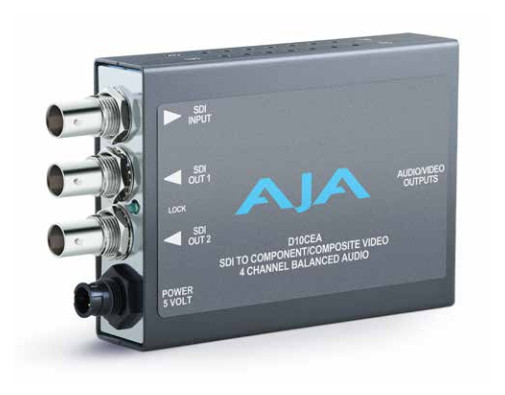

AJA Video Systems Inc D10CEA
DA Audio/Video Converter, SDI/Embedded Audio to Component or Composite Video and 4 Ch Bal/Unbalanced Audio

OUR PART #:  D10CEA

AJA's D10CEA converts SDI video with embedded audio to component or composite analog video and 4 Channel balanced analog audio.
Learn More
Our Price: $595.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc D10CEA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA's D10CEA converts SDI video with embedded audio to component or composite analog video and 4 Channel balanced analog audio. The video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite or YC (S-Video). The analog audio outputs can be wired in a balanced or unbalanced configuration. The 4 audio channels can be selected from group 1-4. Audio and video output connections are available on a 25 pin "D" subminiature connector (breakout cable supplied). All video/audio configuration is done by external dipswitch selection. This versatile, low-cost, miniature monitoring solution also outputs two re-clocked loop-thru SDI outputs.

AJA D10CEA Features:

  • Digital to Analog Audio and Video Converter
  • SDI with Embedded Audio Input
  • Component or Composite Video Outputs
  • 4 Channel Balanced Audio Output
  • 2 Re-Clocked, Loop-Thru SDI Outputs
  • Selectable Audio Channel Pair/Group
  • Power supply included

AJA D10CEA Specifications:

  • Inputs: SDI (SMPTE 259M) w/Embedded Audio, 1x BNC
  • Outputs:
    • Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video)
    • Audio: 4 Channel Balanced/Unbalanced
    • Video/Audio Outputs on 25 Pin D Connector
    • 2 SDI Re-Clocked Loop-Thru, 2x BN
  • Frequency Response: Video, +/- .25dB to 5Mhz, Audio, +/- .5dB to 20Khz
  • User Controls:
    • External Dipswitch
    • Video Format
    • Pedestal
    • H/V Blanking
    • Audio Group 1 - 4
    • Audio Level, -14, 0, +2, +4 dB
  • Power: 5VDC Regulated, 4 Watts
  • Size: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
