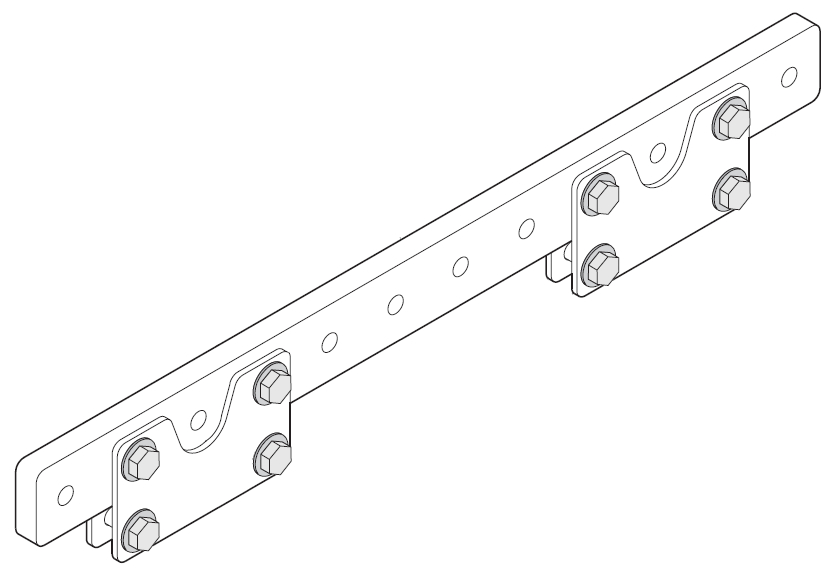

QSC EB2082-i
ILA Support Extension Bar in Black Finish

OUR PART #  EB2082I-BLACK

Our Price: $970.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Used with QSC's Installation Line Array (ILA) products, the EB2082-i extension bar supports suspension where the center of gravity is beyond the limits of the FB2082-i*. In addition, the EB2082-i can be used for arrays where WL118-sw* subwoofers are flown behind the main array due to insufficient trim height.

Shackle holes accept 3/4" (20 mm) screw pin anchor shackles.

*Sold separately.

Note: This listing is for a single EB2082-i extension bar only. All speakers and other array suspension products shown in photo above are sold separately

QSC EB2082-i Specifications:

  • Material: Aluminum 6061-T6
  • Finish: Black powder coat
  • Weight: 38 lbs (17.3 kg)
  • Working Load Limit Information (static loads only)†:
    • 7:1 Design Factor: 1714 lbs (779.2 kg)
    • 10:1 Design Factor: 1200 lbs (545.5 kg)
    • 12:1 Design Factor: 1000 lbs (454.5 kg)

†Note: Working Load Limits are per fastener loaded in double shear. Data is for informational purposes only.



QSC EB2082-i
ILA Support Extension Bar in Black Finish

OUR PART #  EB2082I-BLACK

Product Information:

Used with QSC's Installation Line Array (ILA) products, the EB2082-i extension bar supports suspension where the center of gravity is beyond the limits of the FB2082-i*. In addition, the EB2082-i can be used for arrays where WL118-sw* subwoofers are flown behind the main array due to insufficient trim height.

Shackle holes accept 3/4" (20 mm) screw pin anchor shackles.

*Sold separately.

Note: This listing is for a single EB2082-i extension bar only. All speakers and other array suspension products shown in photo above are sold separately

QSC EB2082-i Specifications:

  • Material: Aluminum 6061-T6
  • Finish: Black powder coat
  • Weight: 38 lbs (17.3 kg)
  • Working Load Limit Information (static loads only)†:
    • 7:1 Design Factor: 1714 lbs (779.2 kg)
    • 10:1 Design Factor: 1200 lbs (545.5 kg)
    • 12:1 Design Factor: 1000 lbs (454.5 kg)

†Note: Working Load Limits are per fastener loaded in double shear. Data is for informational purposes only.
