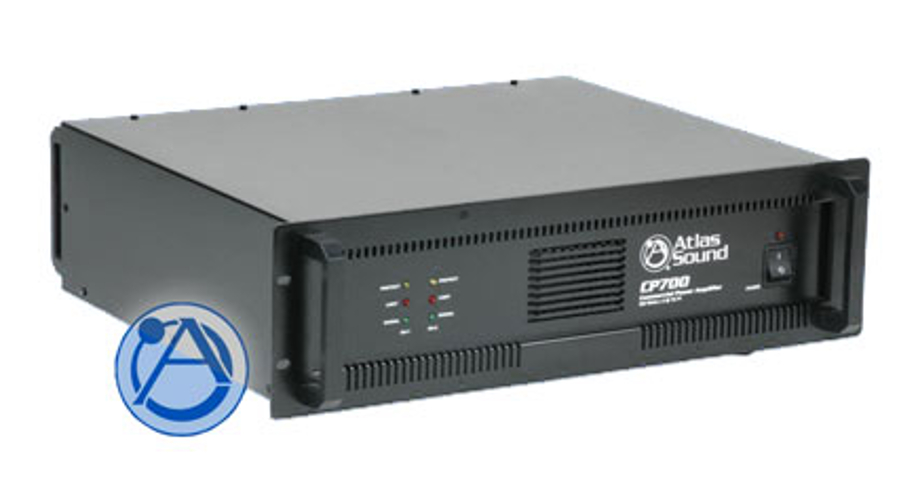

Atlas Sound CP700
Power Amp, Dual Channel, 350W per Channel @ 70.7V; 400W per Channel @ 4 Ohms

OUR PART #:  CP700

A professional grade audio power amplifier specifically designed for demanding contractor applications...
Learn More
Our Price: $781.99
List Price: $976.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound CP700
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A professional grade audio power amplifier specifically designed for demanding contractor applications, the Atlas Sound CP700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 70.7V output through transformer) Now you can have the peace of mind that systems specified with the CP700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

CP700’s two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.

Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the Atlas Sound CP700 is the perfect answer for high power/low cost amplification needs.

Atlas Sound CP700 Features:

  • Soft clip limiter protection
  • Dual-speed, high efficiency fan cooling
  • Stepped attenuators mounted on the rear for security
  • Stereo, bridge, or parallel operating modes selectable via rear mounted switch
  • Balanced inputs on barrier strip and XLR connectors
  • Loop through feature on male XLRs, one per channel input
  • Short-circuit, temperature, and DC offset protection
  • 25V, 70.7V, 100V, and direct coupled (2, 4, and 8 Ohm) outputs mounted on barrier strips with covers for safety
  • Toroidal output transformers provide full electrical isolation and meet worldwide safety agency approval
  • Power-up muting

Atlas Sound CP700 Specifications:

  • Frequency Response: 30Hz - 50kHz
  • Channels: Two
  • ConnectorType: Terminal Block & XLR
  • Finish: Black
  • Number of Fans: 1 - Variable Speed
  • Output Power: 350 Watts/Channel @ 70.7V, 700 Watts 140V/200V Bridge Mono, 400 Watts/Channel @ 4 Ohms
  • Rack Spaces: 3 RU
  • UL Listed/Standard: ETL to 813
  • Dimensions (HxWxD): 5-3/16" x 18-7/8" x 16-7/8"
  • Shipping Weight: 54 lbs
