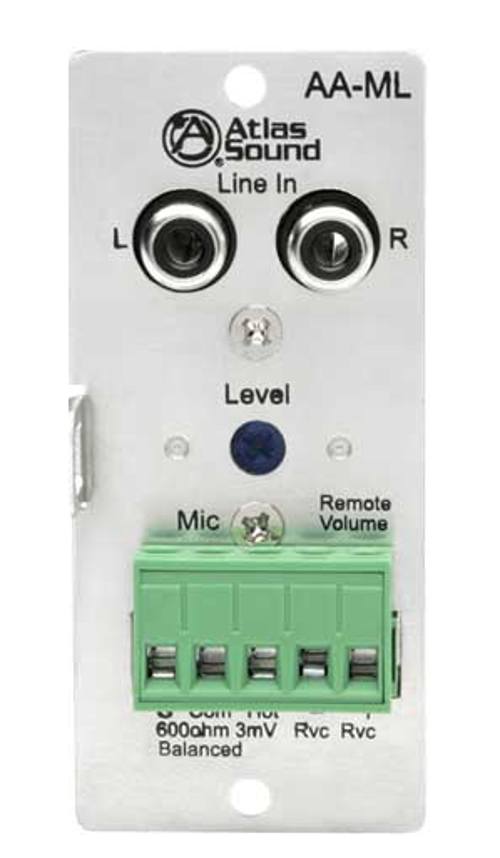

Atlas Sound AA-ML
Mic Line Module with VCA for Atlas AA120M

OUR PART #:  AAML

The AA-ML is an accessory input module for the AA120M. When inserted into the AA120M it can be used as an additional Line or Mic input.
Learn More
Our Price: $69.99
List Price: $86.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AA-ML
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AA-ML is an accessory input module for the AA120M. When inserted into the AA120M it can be used as an additional Line or Mic input. Unit features a level control, RCA summing jacks for unbalanced line level signals, Phoenix style input for mic level signals with switchable 18V phantom power supply, remote VCA level control and 6dB/octave high pass filter (-3dB @ 300 Hz). Note: HPF is only functional for Mic input.

Atlas Sound AA-ML Specifications:

  • Microphone Input: 600 ohms balanced
  • Sensitivity: 3mV
  • Line Input: 10k ohms unbalanced
  • Sensitivity: 300mV
  • Microphone/Line Switch: PCB Jumper
  • Mic Input Phantom Power: +18V (PCB Jumper)
  • Mic Low-Cut Filter: -10dB at 100Hz (PCB Jumper)
  • Output Level Control: Front Panel Screwdriver Adjust
  • Remote Volume Control: 10K pot
  • Terminations:
    • Mic Input - Phoenix terminals
    • Remote Volume - Phoenix terminals
    • Line/AUX - dual RCA summing jacks
