RTS WMS-300L A4F
2-Channel Wall Mount User Station with Speaker, A4F Headphone Connector

OUR PART #:  WMS300L/A4F

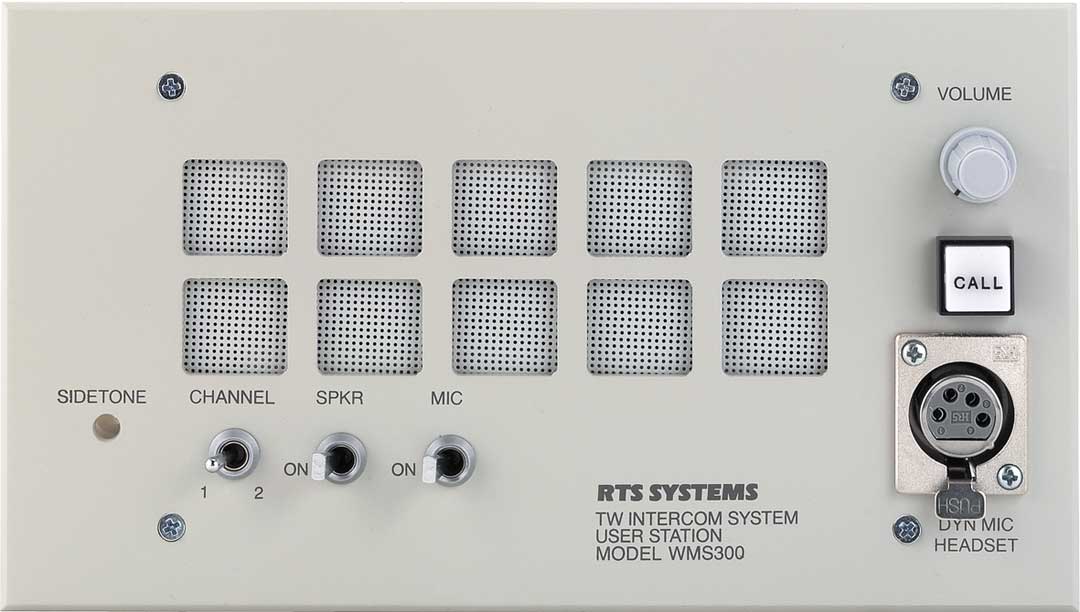

RTS' WMS-300L Wall mount Speaker Station of a series of User Stations especially designed to work within the TW Intercom System.
Learn More
Our Price: $857.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RTS WMS-300L A4F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RTS' WMS-300L Wall mount Speaker Station of a series of User Stations especially designed to work within the TW Intercom System.  It fits directly into a standard 4-gang electrical conduit box (2-1/4" deep).  The rear section is not enclosed and sets the back-box to provide a housing when installed.

This user station is perfect for permanent installations where a wall mounted station can provide an unobtrusive operating position.  Most often it is located where the operator can conveniently attend to on-going operations while wearing a headset or listening to the loudspeaker. Typically, the WMS-300L is a very practical user station since it can operate in an "open-listening" mode with the panel-mounted loudspeaker as well as privately with a headset or a handset.

In the open-listening operating mode, with both the loudspeaker and an external microphone turned on, acoustic feedback is suppressed by adjustment of a front panel sidetone (balance) control.  This control cancels the originating microphone signal in the local loudspeaker.  Most any type of microphone can be used, a hand held push-to-talk microphone, a headset/handset microphone, etc.

In the private operating mode, almost any headset or handset can be used while the loudspeaker is turned off.  This method can be extended by using the loudspeaker for monitoring and the headset or handset for conversation.

Practical operating features include two-channel selection, latching and momentary-action microphone on-off switches, a speaker on-off switch, a sidetone control, and a headphone/loudspeaker volume control.

Screw terminals counted on the circuit card are provided for user station interconnection to line.  A two pair shielded cable such as Belden 8723 or equivalent is recommended since it allows each channel to be carried over a shielded pair, thus reducing the possibility of crosstalk between channels.

Specifications:

  • Headset Connector:
    Dynamic Microphone: XLR type 4 or 5-pin connector version available
  • Line Connector: Screw Terminals
  • Dimensions: 4.50" (114.30mm) high, 8" (44.5mm) wide, 1.75" (44.45mm) deep
  • Weight: 1 lbs (0.45 kg)
  • Finish: Light gray enamel paint
  • Power Consumption:
    Quiescent: 10 to 40 mA
    Operating: 25 ohm phones: 50mA
    Operating: 25 ohm phones + call light: 70mA
