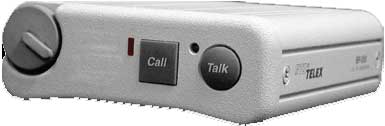

RTS BP-319 A4F
Single-Channel Portable Metal Beltpack with A4F Headphone Connector

OUR PART #:  BP319/A4F

RTS' BP-319 portable beltpack is designed for use with RTS™ Two-Wire intercom systems.  The BP-319 is a microprocessor controlled one-channel intercom .
Learn More
Our Price: $331.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RTS BP-319 A4F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RTS' BP-319 portable beltpack is designed for use with RTS™ Two-Wire intercom systems.  The BP-319 is a microprocessor controlled one-channel intercom.  The BP-319 has connections for headset/earset microphones (Dynamic or Electret).  The factory setting is for Dynamic.

Features:

  • Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor-controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel one.
  • Headset 4-pin XLR connection
  • A built-in auto-sensing headset connector determines automatically whether a dynamic or electret headset is connected to the system.

Specifications:

  • Channel Supplied Power Requirements: 30 VDC nominal (standard RTS line), 45 to 70 mA
  • Environmental Requirements:
    Storage: -20°C to 80°C; 0% to 95% humidity, noncondensing
    Operating: 0°C to 50°C; 0% to 95% humidity, noncondensing
  • Dimensions: 5" (127 mm) high, 3.5" (88.9 mm) wide, 1.8" (45.7 mm) deep
  • Weight: Approximately 13 oz (364 g)

Interface Requirements:

  • Headset/Earset:
    50 to 200 ohm dynamic microphone
    50 to 600 ohm headphones
  • RTS Intercom Channel:
    Output Level: 0.775 Vrms (0 dBu) nominal
    Bridging Impedance: greater than 10,000 ohms
  • Call Signalling:
    Send: 20 kHz ±100 Hz, 240 mVrms ±10%
    Receive: 20 kHz ±800 Hz, 100 mVrms
    Mic-Off Frequency Detect: 24 kHz ±800 Hz, 100 mVrms
    Noise Contribution: less than -60 dB on the line

Headphone Amplifier:

  • Maximum Output: 60 mW into 150 ohms
  • Frequency Response: 200 Hz to 8 kHz +1/-4dB nominal
  • Audible Alert: 1 kHz tone
  • Total Harmonic Distortion: Less than 0.2% nominal at 50 mW from the line
  • Sidetone: 20 dB minimum range, adjustable

Connector Pin Configurations:

  • Intercom Channel Connector
    Pin 1 Headset Microphone low
    Pin 2 Headset Microphone high
    Pin 3 Headphone Common
    Pin 4 Headphone Chan 1 or Chan 1 and Chan 2 audio
