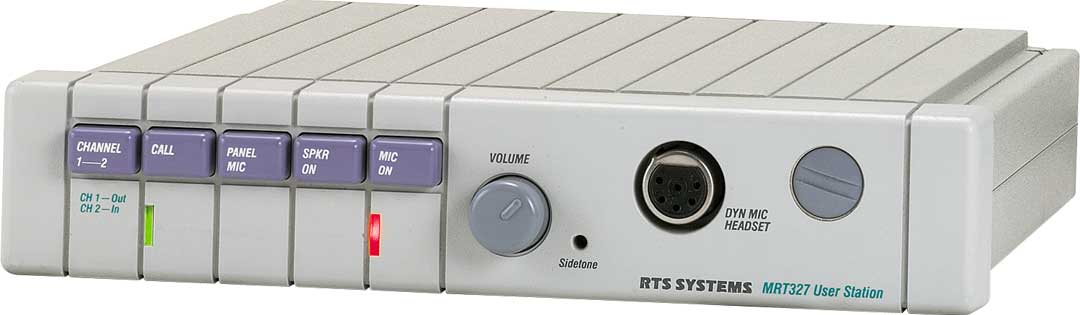

RTS MRT-327 A5F
2-Channel User Station with A5F Headphone Connector

OUR PART #  MRT327/A5F

Our Price: $532.00
List Price: $537.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

RTS' MRT-327 is a two-channel intercom station for use in RTS-TW intercom systems.  It may be used as a headset station or as a speaker station (with an optional MCS-325 Modular Speaker).  The MRT-327 may be installed in optional console or rack mount configurations.

Features:

  • Call Signaling
    The MRT-327 can send and receive 20 kHz call signals.
  • Dual-Action Momentary/Latching Mic Switch
    The Mic on/off switch can be used as a momentary push-to-talk switch or as a latching on/off switch.
  • Remote Deactivation
    The MRT-327 can receive 24 kHz “talk-off” signals for deactivation of the MRT-327 microphone from a remote location.
  • Microphone Limiter
    The microphone pre-amplifier circuit contains a limiter which helps to equalize output for different voice levels.
  • Optional Microphone Speaker & Headset Configurations
    The standard MRT-327 accepts an unbalanced, dynamic-mic headset or a dynamic microphone used in conjunction with an external speaker located on the rear panel. It also has a jack for an optional Model MCP-90-xx gooseneck panel microphone. Additionally, the MRT-327 may be internally modified for use with a carbon or balanced-dynamic microphone. It can also be modified to provide the microphone audio as an unswitched, balanced output.
  • Powering Options
    The MRT-327 receives operating power from the intercom line. It may be internally modified for local powering from a separate dc power supply or batteries.

Specifications:

  • Input DC Voltage:
    Mode: 18 to 35 volts DC
    Local Power: 15 to 35 volts DC (12 to 15 volts DC, reduced performance)
  • DC Current Drawn from TW Line:
    Quiescent: 45 mA ±10%
    Operating, 25 ohm phones: 75 mA ±10%
    Operating, 25 ohm phones + call light: 90 mA ±10%
    Operating, 8 ohm speaker: 240 mA ±10%
    Operating, 8 ohm speaker + call light: 300 mA ±10%
    Operating current is measured with output level at 10
    Local power option draws no current from TW line.
    DC Current Drawn from TW Line
  • Notes: Operating current is measured with output level at 10 dB below clipping.  Local power option draws no current from TW line.
  • Impedance Across Line: 10,000 ohm, minimum (designed for use with 200O “TW” intercom lines)
  • Environmental Temperature:
    Operating: 0°C to 60°C
    Storage: 40°C to 85°C
    Humidity: Operating and Storage: 5% to 95%, non-condensing
  • Noise Contribution:
    (Ch 2): >-60 dBp
    (Ch 1): >-80 dBp

Microphone Preamplifier:

  • Input Impedance: 470 ohm ±5% (dynamic mic)
  • Source Impedance: 200 ohm, nominal
  • Maximum Input Level: 150 millivolts
  • Frequency Response: (-54dB input): 100 Hz to 8 kHz ±3dB
  • Limiter Range: 30 dB
  • Carbon Mic Excitation Current: 10 mA, nominal

Current Source:

  • Transfer Ratio: 3.3 mA/volt = 3.3 millisiemens
  • Output: 3.3 mA into 200 ohm = ±1 volt peak, nominal

Speaker Amplifier:

  • Maximum Voltage Gain: 30 dB
  • Frequency Response: 100Hz to 8kHz ±4dB
  • Output Power: 1.5 watts into 8 ohm nominal
  • Speaker DIM (speaker muting during mic activation) adjustable, -4 to -30 dB (Factory set to -6 dB)

Headphone Amplifier:

  • Voltage Gain: 34 dB
  • Output Voltage: 8 volts peak-to-peak into 25 ohm nominal
  • Output power: 1/2 watt peak into 25 ohm
  • Frequency Response: 150 Hz to 10 kHz ±3dB
  • Headphone Impedance Range: 25 to 600 ohm (600 to 2000 ohm with reduced levels)
  • Sidetone Adjustment Range: -20 dB to full on

Call Light:

  • Signalling Frequency: 20 kHz ±100 Hz
  • Flashing Rate: 5 Hz ±2 Hz

Talk-Off:

  • Frequency: 24 kHz nominal

Connectors:

  • Dynamic Microphone Headset: XLR type 6-pin female
  • Panel Microphone: 1/4" standard phone jack, 3-circuit
  • Line Input: One (1) XLR type 3-pin female and one (1) XLR type 3-pin male, wired in parallel

Mechanical:

  • Dimensions: 1.71" (44 mm) tall, 8.2" (208 mm) wide, x 9.0" (228 mm) deep
  • Weight: 2.75 lbs (1.25 kg)
  • Construction/Finish: Aluminum case, thermoplastic front panel, light gray finish
