Leprecon 90-06-0256
ULD-360 Stage Pin 6-Channel Tree-Mount Dimmer

OUR PART #:  ULD360-STANDARD

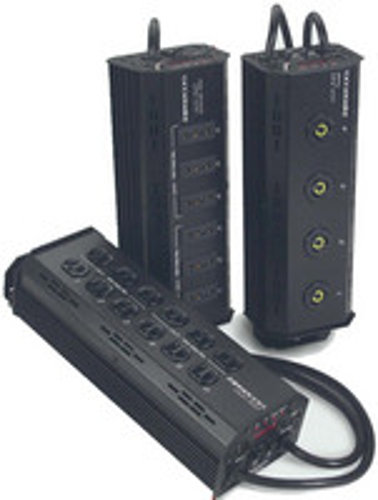

NOTE: Photo Above Depicts Multiple ULD Series Models. One Unit Included with Purchase. Actual Apperance May Vary.
Learn More
Our Price: $850.00
List Price: $1,000.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leprecon 90-06-0256
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Photo Above Depicts Multiple ULD Series Models. One Unit Included with Purchase. Actual Apperance May Vary.

Each ULD dimmer is equipped with dual 25 Amp SCR’s, illuminated magnetic breakers, and over-volt and over-temp protection. Fully encapsulated chokes come standard with every dimmer to further ensure quiet operation. Through the display based menu system, each channel can be defined as a linear, non-dim, fluorescent or fixed intensity level. These are just some features that set the ULD apart from other dimmer packs on the market.

Leprecon 90-06-0256 Tree-Mount Dimmer Features:

  • Illuminated magnetic breakers
  • Over-temp/Over-volt pack protection
  • 4 programmable output settings per channel:
    • Linear
    • Non-dim
    • Fluorescent
    • Fixed intensity
  • 25 Amp SSR per channel
  • Encapsulated chokes for quiet operation
  • LED display
  • DMX-512 5-pin M/F XLR
  • Built-in mounting bracket
  • Optional bracket available for horizontal mounting
  • Rated continuous use duty cycle

Leprecon 90-06-0256 Tree-Mount Dimmer Specifications:

  • Channels: 6
  • Output connector: Stage Pin
  • Power in Plugs: Nema 5-15
  • Magnetic Breakers: 15 Amp
  • Max Watts per pack @ 120V: 1800
  • Packerage weights: 10 lbs
