CAD Audio E70

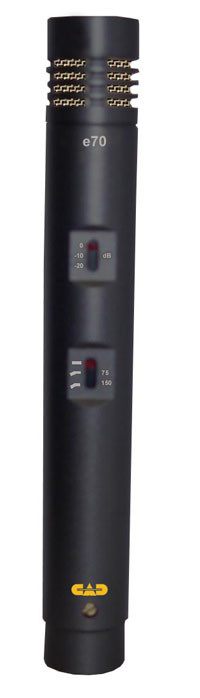

equitek e70 Modular Dual-capsule Cardioid Condenser Microphone

OUR PART #:  E70

The CAD Audio equitek e70 Modular Dual-capsule Condenser Microphone gives you great versatility in a small, rugged metal housing, and provides transparent...
Learn More
Our Price: $199.00
List Price: $299.00
You save 33%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

CAD Audio E70
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The CAD Audio equitek e70 Modular Dual-capsule Condenser Microphone gives you great versatility in a small, rugged metal housing, and provides transparent, accurate sound reproduction. Use the omnidirectional capsule for flat near field and ambience, or the cardioid capsule for proximity boost and off-axis rejection. Capture your instrumentation with exacting detail. Features include field-effect detection, transformerless drive, dual-frequency hi-pass filter and two-position attenuator. Elastic shock mount, stand clamp and windscreen are included. P48 (48V) phantom power is required.

CAD Audio equitek e70 Specifications:

  • Operating Principle:  Condenser
  • Polar Pattern:  Cardioid and omnidirectional
  • Frequency Response:  20Hz to 20KHz
  • Sensitivity:  -39dBV (11mV) @ 1 Pa
  • Impedance:  85 ohms
  • Max SPL:  145dB, 1% THD, attenuator engaged
  • Self Noise:  23dBA
  • Hi-pass Filter:  75Hz and 150Hz, 6dB/oct
  • Attenuator:  10dB and 20dB
  • Power Requirements:  P48, 2mA

Specifications are subject to change without notice.
