Product Overview

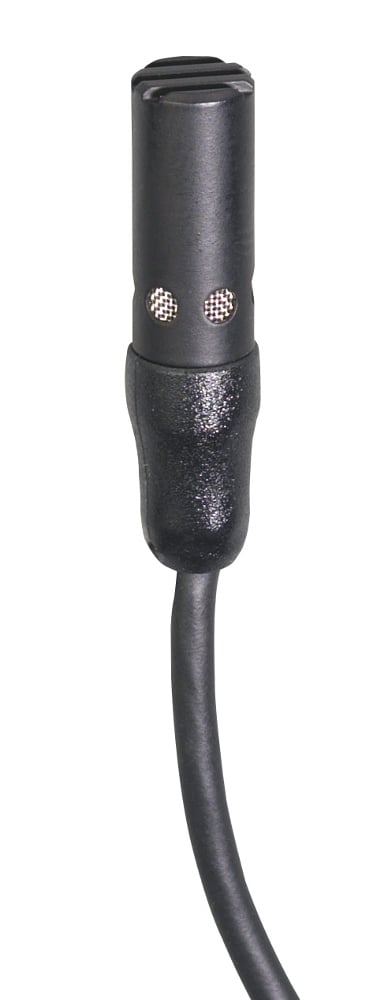

Audio-Technica’s discreet-design AT898 cardioid mic is intended to be worn either as a lavalier mic or hidden in clothing. It features a low profile while delivering maximum intelligibility along with accurate voice reproduction and unobtrusive appearance. It comes equipped with switchable low-frequency roll-off which reduces sensitivity to popping — all contributing to excellent performance in a range of applications. Can operate using either battery or phantom power.
Applications
Houses of worship • Broadcast studios • Theaters • More
Includes
- AT898 discreet-designed cardioid mic with 9.8' attached cable
- AT8537 power module
- AT8439 cable clip
- Clothing clip base
- Viper clip base
- Magnet clip base and plate with lanyard
- Mic holders:
- 2x Windscreens
- Battery
- Protective carrying case
Features
- Maximum intelligibility and clean, accurate reproduction for lecturers, stage and television talent, and houses of worship
- Low-profile design (a mere 5mm in diameter) is ideal for applications requiring minimum visibility
- Operates on battery or phantom power
- Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip, windscreens, interchangeable single and double mic holders
- Accessories available separately
- 9.8' (3.0m) cable permanently attached to mic, TA3F connector at power module
- RoHS compliant - free from all substances specified in the EU directive on hazardous substances
Specifications
- Element: Fixed-charge back plate, permanently-polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 200 - 15,000Hz
- Low Frequency Roll-off: 80Hz, 12dB/octave
- Open Circuit Sensitivity:
- Phantom: -43dB (7.0mV) re 1V @ 1Pa
- Battery: -46dB (5.0mV) re 1V @ 1Pa
- Impedance:
- Phantom: 200Ω
- Battery: 250Ω
- Maximum Input Sound Level:
- Phantom: 131dB SPL, 1kHz @ 1% T.H.D.
- Battery: 115dB SPL, 1kHz @ 1% T.H.D.
- Dynamic Range (typical): Phantom: 100dB, 1kHz @ Max SPL; Battery: 84dB, 1kHz @ Max SPL
- Signal-to-Noise Ratio: 63dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11-52VDC, 2mA typical
- Battery Type: 1.5V AA / UM3
- Battery Current/Life: 0.4mA / 1200 hours typical (alkaline)
- Switch: Flat, roll-off (recessed)
- Weight (microphone): 0.03oz.
- Weight (power module): 3.6oz.
- Dimensions (microphone): 0.91" long, 0.21" diameter
- Dimensions (power module): 5.71" long, 0.83" diameter
- Output Connector (power module): Integral 3-pin XLRM-type
- Cable: 9.8' long (permanently attached to microphone), 0.008" diameter, 2-conductor, shielded cable with TA3F output connector that mates with TB3M jack on power module
- Note: further information can be found within the items located under the "Documentation" tab above.
