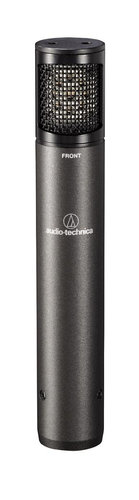

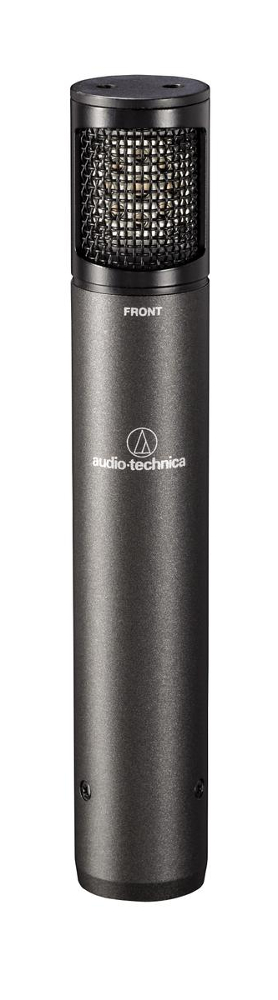

Audio-Technica ATM450 Cardioid Condenser Instrument Microphone, Side-Address

The ATM450 cardioid condenser microphone from Audio-Technica is one of the star performers in their Artist Series remake. It features an innovative side-address stick design, allowing for endless placement options and minimal obstructions. It comes equipped with an integral 80Hz hi-pass filter switch, providing and easy shift from a flat frequency response to a low-end roll-off. Additionally, it offers a switchable 10dB pad which lowers the microphone's sensitivity, and adding to the mic's versatility with a wide variety of performers and system configurations. Its extended flat frequency response also makes it ideal for the capture of high SPL (sound pressure level) sources as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

Applications

Drum overheads • Percussion • Acoustic guitar • Strings • Other acoustic instruments and high SPL sources

Includes

• ATM450 microphone
• AT8471 isolation clamp for ⅝"-27 threaded stand
• ⅝"-27 to ⅜"-16 threaded adapter
• Windscreen
• Soft protective pouch

Features

• Unique side-address stick design maximizes placement options with minimal obstructions
• Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
• Integral 80Hz HPF switch and 10dB pad
• Durable performance for professional applications
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Rugged, all-metal design and construction for years of trouble-free use
• Includes isolation clamp for shock protection, secure mounting and easy positioning

Specifications

• Element: Fixed-charge back plate permanently-polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 40Hz - 20kHz
• Low Frequency Roll-Off: 80Hz, 18dB/octave
• Open Circuit Sensitivity: –41dB (8.9mV) re 1V @ 1Pa
• Impedance: 200Ω
• Maximum Input Sound Level: 152dB SPL, 1kHz @ 1% T.H.D.
• Dynamic Range (Typical): 127dB, 1kHz @ Max SPL
• Signal-to-Noise Ratio: 69dB, 1kHz @ 1Pa
• Phantom Power Requirements: 11 - 52VDC, 3.5mA typical
• Switches: Flat, roll-off, 10dB pad
• Weight: 3.5oz.
• Dimensions (L x Dia): 5" x 0.83"
• Output Connector: Integral 3-pin XLRM-type
• Note: further information can be found within the items located under the "Documentation" tab above.
