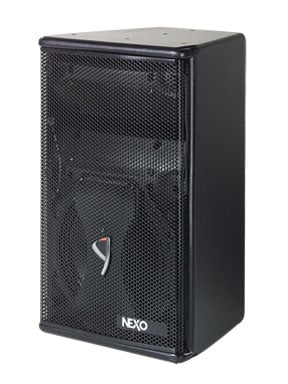

Nexo GEOS830
8" 2-Way Module

OUR PART #:  GEOS830

The GEO S830 has proven the value and effectiveness of both vertical and horizontal tangent arrays.
Learn More
Similar Products

The GEO S830 has proven the value and effectiveness of both vertical and horizontal tangent arrays. Its patent-pending Hyperboloid Reflective Wavesource creates tangent wavefronts whether the adjacent cabinets are additional S830s or 0.125°-5° GEO S805s.

The unique geometry of the HRW allows the S830 to be used as a down-fill for vertical tangent arrays of S805 modules, or as a 30° building block in horizontal tangent arrays. In either orientation, the S830 delivers totally coherent high frequencies, transparent midrange and solid low end with its neodymium 1"-exit compression driver and long excursion 8" cone transducer.

Features:

  • 8" long throw neodymium woofer with Directivity PhaseDevice™
  • 1"-exit neodymium compression driver on HyperboloidReflective Wavesource™
  • Configurable Directivity Flange™ allows 80° or 120° horizontaldispersion

Specifications:

  • Frequency Response: 67 Hz – 19 kHz +/- 3dB
  • Usable Range @ 6dB: 60 Hz – 20 kHz
  • Sensitivity (1W @ 1M): 99dB SPL Nominal; 97dB SPLWideband
  • Crossover Frequency: 1.6 kHz Passive
  • Nominal Impedance: 16 ohms
  • Components: LF – 8" Neodymium Hi-flux 16 ohm driver;HF – 1" Throat Neodymium Driver on a Hyperboloid Reflective Wavesource
  • Dimensions (HxWxD): 16" x 9-7/8" x 5-5/8"
  • Shape: 30 degrees Trapezoid
  • Weight: 28.6 lbs. Net
  • Connectors: 2 x NL4MP 4-pole SPEAKON (in and through)
  • Construction: Baltic Birch Ply finish with structuredblack coating. Dark gray carpet is optional.
  • Fittings: Grille, perforated sheet
