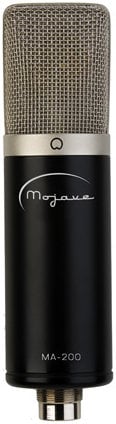

Mojave Audio MA-200
Large Diaphragm Cardioid Condenser Microphone

OUR PART #:  MA200-MOJAVE

The MA-200 is a large diaphragm, vacuum tube condenser microphone with a fixed cardioid pattern.
Learn More
Our Price: $1,095.00
List Price: $1,250.00
You save 12%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mojave Audio MA-200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MA-200 is a large diaphragm, vacuum tube condenser microphone with a fixed cardioid pattern. Born to a lineage of fine microphone designs by David Royer, the MA-200 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Utilizing hand-selected 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-200 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-200 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-200 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Features

  • Hand-selected 3-micron capsule
  • Jensen audio transformer
  • Military grade JAN 5840 vacuum tube
  • Internal switchable power supply voltage
  • Ultra clean signal path

Recommended Applications

  • Vocals
  • Broadcast
  • Acoustic Instruments
  • Piano
  • Drum Overheads, Drum Rooms
  • Orchestral Recording
  • Choral Recording
  • Voice-overs

Specifications

  • Transducer Type: Externally excited capacitor type
  • Diaphragm: 1" diameter, gold sputtered
  • Diaphragm Thickness: 3-microns
  • Polar Response: Cardioid
  • Frequency Response: 30hz - 18kHz, +/-2.5dB
  • Distortion: Head amp only, <1% @ 117dB SPL, <3% @ 125dB SPL
  • Self Noise: 14dB nominal, not to exceed 16dB (A-Weighted)
  • Impedance: 200 ohms, balanced using an output transformer
  • Vacuum Tube: 5840 - pentode tube wired for triode operation
  • Power Requirements: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts
  • Dimensions: 7 5/8" x 2"
  • Weight, Microphone: 1 lb
  • Weight, Carrying case with microphone, power supply, shock mount andcables: 13 lbs
