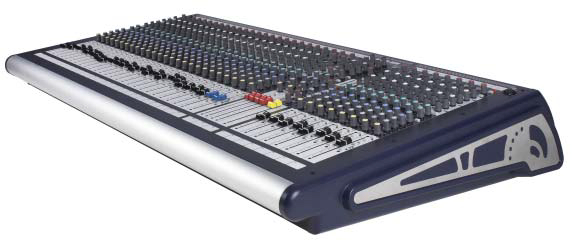

Soundcraft GB2-32
32-Channel Analog Mixing Console with 4 Group Busses and 6 x 2 Output Matrix

OUR PART #  GB2-32

Call for info!


Recommended Accessories

The Soundcraft GB2 is the latest addition to the Soundcraft GB Series, featuring 4 group busses configured as 2 stereo subgroups and an integral 6 x 2 matrix.

Intended for installed-sound and Audio-Visual applications that do not require the functionality provided by the GB4 or GB8, the GB2 is available in frame sizes of 16, 24 and 32 mono inputs, each with 2 stereo inputs as standard. Each input features the high-performance GB30 Mic Pre and GB30 Equaliser designs of the GB4 and GB8, along with 6 Aux buses.

Four Subgroups are provided as two stereo pairs, with a unique facility for adjusting the width of the stereo signal across the stereo mix. The channel pan settings are retained on the group outputs, while the degree of stereo separation to the mix bus is independently adjustable from full stereo through to mono.

The GB2 also features two stereo input channels, with separate mic and line inputs. In normal use, the mic inputs are routed to the local channel and the line inputs act as a stereo return to the mix bus. Selecting the LINE input to the local channel overrides the Mic inputs.

Soundcraft GB2-32 Features:

  • Individually switched 48V phantom power on every input module
  • 6 Aux sends
  • 4 Sub groups (paired)
  • 6 x 2 Output Matrix
  • GB30 mic pre-amp
  • 4-band GB30 EQ
  • Integral power supply, with an external power supply link option
  • All metal TRS jacks and Neutrik XLRs
  • Direct outputs on all mono input channels

Soundcraft GB2-32 Specifications:

  • Noise (Measured RMS, 22 Hz to 22 kHz Bandwidth):
    • Mic E.I.N. @ Unity Gain, 150 Ohm Source Impedance:  -128dBu
    • Mix Output, 32 Inputs Routed to Mix:  <-85dBu
    • Group Outputs:  <-85dBu
    • Aux Outputs:  <-83dBu
    • Matrix Outputs:  <-89dBu
  • Crosstalk (@1kHz, typical):
    • Input Channel Mute:  <-93dB
    • Input Fader Cut-Off:  <-92dB
    • Pan Isolation:  <-70dB
    • Mix Route Isolation:  <-93dB
    • Group Route Isolation:  <-93dB
    • Adjacent Channel Crosstalk:  <-99dB
    • Group to Mix:  <-90dB
    • Aux Send Pots Offness (typical):  <-80dB
    • Matrix Send Pots Offness (typical):  <-80dB
  • Frequency Response:  Mic/Line Input to any output, 20 Hz - 20 kHz < 1dB
  • THD + N:  Mic sens. -30dBu, +20dBu at all outputs @ 1 kHz < 0.006%
  • CMRR:  Typical @ 1 kHz 80dB
  • Input & Output Max Levels:
    • Mono & Stereo Mic Inputs:  +15dBu
    • Mono Line Inputs:  +30dBu
    • Stereo Line Inputs:  +20dBu
    • Insert Returns:  +20dBu
    • Any output:  +20dBu
    • Nominal Operating Level:  0dBu
    • Headphone Power: 2 x 250mW into 200 Ohms
  • Input & Output Impedances:
    • Mic Inputs:  2k Ohms
    • Line Inputs and Stereo Returns:  10k Ohms
    • Input channels Insert Return:  5k Ohms with EQ in, otherwise 3k Ohms
    • Mix, Group, Aux, Matrix & Direct Outputs:  150 Ohms
    • Insert Sends:  75 Ohms
    • Recommended Headphone Impedance:  50 - 600 Ohms
  • Weight:  30 kg
