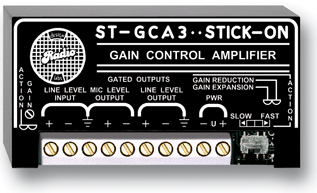

Radio Design Labs ST-GCA3
Gain Control Amplifier

OUR PART #  STGCA3

Our Price: $130.25
List Price: $174.24
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' ST-GCA3 constantly adjusts for changes in input levels, bringing up low levels, and reducing gain for high levels. The audio level is constantly adjusted to maintain the correct output. The AGC adjustment rate is switch-selectable. Making audio levels uniform and consistent improves the performance of nearly any type of audio system, and the ST-GCA3 SLOW mode is ideal for leveling music sources. The FAST setting of the ST-GCA3 makes it ideal for use in systems prone to loud bursts of audio, and inconsistent levels which must be constantly and quickly corrected. In paging systems, intercom systems, and mic mixing applications where intelligibility is a must the ST-GCA3 FAST mode can be the key to optimum performance.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Automatic Gain Control
  • Wide Dynamic Range AGC
  • Slow Inaudible Gain-Reduction
  • Tight Dynamic Control
  • Positive, Fast Gain Reduction
  • Low-Noise and Low-Distortion AGC
  • RDL® SupplyFlex™ Power Input Configuration

Specifications

  • Input: +4 dBu balanced (nominal); -45 dBu to +20 dBu for rated output
  • Maximum Input Level: +26 dBu
  • Outputs (2): +4 dBu, 150 O balanced LINE(nminal, +0/-3 dB); -45 dBu balanced MIC into 150 O
  • AGC Range: > 40 dB (output level maintained within 3 dB)
  • Frequency Response: 10 Hz to 20 kHz (+/- 0.75 dB)
  • No input signal, output un-muted: < -70 dB
  • No input signal, output muted: < -80 dB
  • Input signal present, output muted: < -50 dB
  • THD+N: < 0.3% (50 Hz to 20 kHz; Typ. 0.05% @ 1 kHz)
  • Mute Threshold: -46 dB below max input; -28 dB below normal input
  • Muting Response: 15 sec. for 50 dB
  • SLOW AGC response: 8 sec. for 20 dB average level adjustment
  • FAST AGC response: 3 sec. for 20 dB average level adjustment
  • On Delay: 50 ms to ramp from muted to fully on condition
  • Indicators (2): LED, green variableintensity shows audio expansion; LED, yellow variable intensity shows audio gain reduction
  • Note: Both LEDs display equalintensity for normal input level (equal available expansion and gain reduction).
  • Power Requirement: GROUND-REFERENCED or FLOATING, 24 to 33 Vdc@ 40 mA
