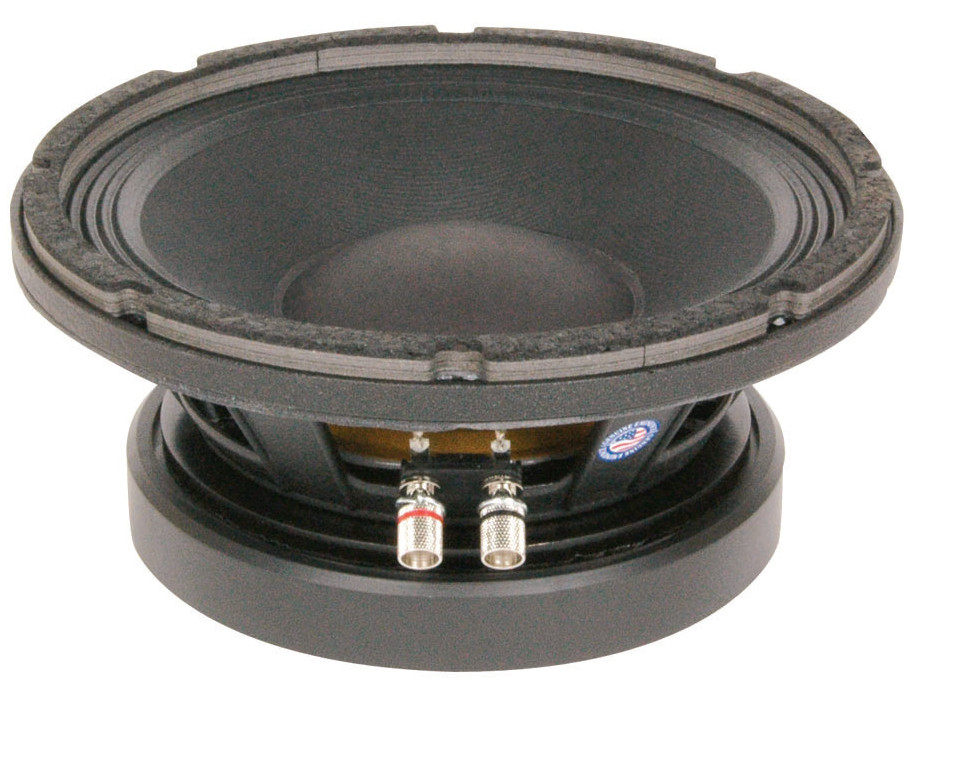

Eminence KAPPA PRO-10A 10" Speaker

Recommended for pro audio in a sealed midrange, vented mid-bass, and bass enclosure.

Specification

Nominal Basket Diameter 10", 254mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 500W

Music Program 1000W

Resonance 46Hz

Usable Frequency Range 102Hz - 2kHz

Sensitivity*** 97dB

Magnet Weight 80 oz.

Gap Height 0.37", 9.53mm

Voice Coil Diameter 3", 76.2mm

Mounting InformationRecommended Enclosure Volume

Sealed 7-9.9 liters / 0.25-0.35 cu.ft.

Vented 12-28 liters / 0.43-1 cu.ft.

Driver Volume Displaced 104.8 cu.in. / 1.72 liters

Overall Diameter 10.25", 260.4mm

Baffle Hole Diameter 9.13", 231.8mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket Fitted as standard

Mounting Holes Diameter 0.27", 6.86mm

Mounting Holes B.C.D. 9.75", 247.65mm

Depth 4.33", 110mm

Net Weight 15.3 lbs, 6.9 kg

Shipping Weight 16.4 lbs, 7.4 kgs
