Jensen Transformers VBH-3RR 3-Channel Component Video Isolator/Ground Loop Corrector (600 MHz)

OUR PART #: VBH-3RR

Copied to clipboard

Reduces ground current-induced video interference such as "hum bars" by a factor of over 100, eliminating the visible effects of these types of interference. ...Read more

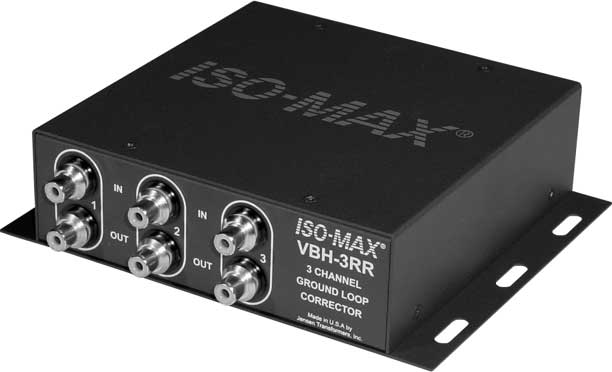

Jensen Transformers VBH-3RR 3-Channel Component Video Isolator/Ground Loop Corrector (600 MHz) Image 1
Jensen Transformers VBH-3RR 3-Channel Component Video Isolator/Ground Loop Corrector (600 MHz)
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Reduces ground current-induced video interference such as "hum bars" by a factor of over 100, eliminating the visible effects of these types of interference. The high bandwidth and low VSWR prevent degradation of the picture quality due to high frequency roll-off and cable reflections.

Features:

  • For 75 Ohm systems
  • 56dB of CMRR typ at 60Hz minimizes ground loops
  • DC to 600MHz bandwidth for excellent picture quality
  • Greater than 1 V RMS 60Hz common-mode level handling
  • VSWR under 1.1 at 100MHz to prevent waveform distortion
  • Insertion loss of 0.05 dB maintains maximum S/N ratio
  • Channels may be used independently
