Intelix AVO-CLIP
Universal Balun Mounting Clip

OUR PART #:  AVO-CLIP-F

The Intelix AVO-CLIP-F allows Intelix AvoCat Series and Classic Series baluns to be mounted on a 19" rack tray, standard 35 mm DIN rail, or any other screw-mountable surface.
Learn More
Our Price: $20.45
List Price: $22.72
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-CLIP
Qty:

Similar Products

The Intelix AVO-CLIP-F allows Intelix AvoCat Series and Classic Series baluns to be mounted on a 19" rack tray, standard 35 mm DIN rail, or any other screw-mountable surface. Each AVO-CLIP-F contains a universal mounting bracket, DIN rail converter clip, two mounting screws, and four fasteners.

Intelix AVO-CLIP Specifications:

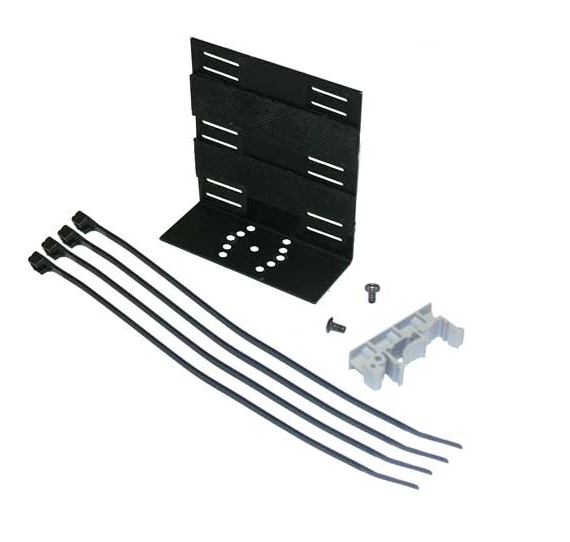

  • AVO-CLIP Contents: (1) Angle Mounting Bracket, (1) DIN Rail Clip, (2) DIN Rail Clip Mounting Screws, (4) Tie Fasteners
  • Bracket Dimensions: 3.25" x 1.25" x 3.00"
  • Bracket Material: Black aluminum
  • DIN Rail Clip Dimensions: 1.75" x 0.75" x 0.40"
  • DIN Rail Clip Material: Molded plastic
  • DIN Rail Compatibility: 35 mm DIN rail
  • Tie Fastener Length: 11"
  • Overall Mounted Height: 4" (3U)
  • Intelix DIN-RACK-KIT Compatibilty: The IntelixDIN-RACK-KIT supports up to 26 AVO-CLIPs.
  • Shipping Weight: 0.5 lbs
  • Warranty: 2 years

Intelix Balun Compatibility

  • (1) AVO-A2-F
  • (1) AVO-A4-F
  • (1) AVO-SVA2-F
  • (2) AVO-V1-F
  • (2) AVO-V1-ST-F
  • (1) AVO-V1A2-F
  • (1) AVO-V2A2-F
  • (1) AVO-V3-F
  • (2) VB-F
  • (2) RF-F
  • (2) V1-F
  • (1) V1-AR-F
  • (1) V1-PTZ-F
  • (2) V1-ST-F
  • (1) V3AD-F
19" Balun Rack Mounting Tray (with 17" DIN Rails)
Intelix DIN-RACK-KIT 19" Balun Rack Mounting Tray (with 17" DIN Rails)
The ideal solution for rack-mounting a variety of baluns, completely independent of signal format.  Each DIN-RACK-KIT-F features two DIN rails which allow for up to 26 AVO-CLIP-Fs to be mounted on one tray. Bracket Dimensions ...
