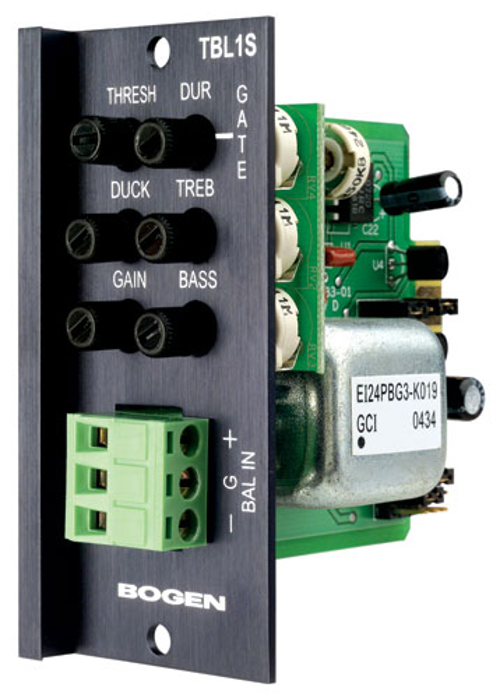

Bogen TBL1S Transformer-Balanced Input Module, Screw Terminal

The Bogen Communications TBL1S is a transformer-balanced input module.

Bogen Communications TBL1S Features:

• Transformer-isolated line level input
• Gain/Trim control
• Bass & Treble controls
• Variable ducking level when muted
• Fade back from mute
• Screw terminals

Bogen Communications TBL1S Specifications:

• Gain: -11 dB to +19 dB
• Frequency Response: 10 - 40 kHz (+0/-3 dB)
• S/N (20 Hz - 20 kHz): -75 dBV
• Distortion: < 0.3%, 20 Hz - 20 kHz @ 1V
• Input Impedance: 10k ohms/600 ohms (jumper selectable)
• Gate Threshold: 5 mV to disable
• Gate Duration: 0.5s to 5s
• Priority: Four levels
• Duck Level: -10 dB to -72 dB
• Tone: +/- 10 dB @ 100 Hz & 10 kHz
• CMRR: > 80 dB @ 1 kHz
• Controls: Gain, Bass, Treble, Duck, Gate Threshold, GateDuration
• Connector: Pluggable Euro Screw Type
• Dimensions (WxHxD): 1-3/8" x 3-1/8" x 3-1/2"
• Weight: 3.8 oz.
