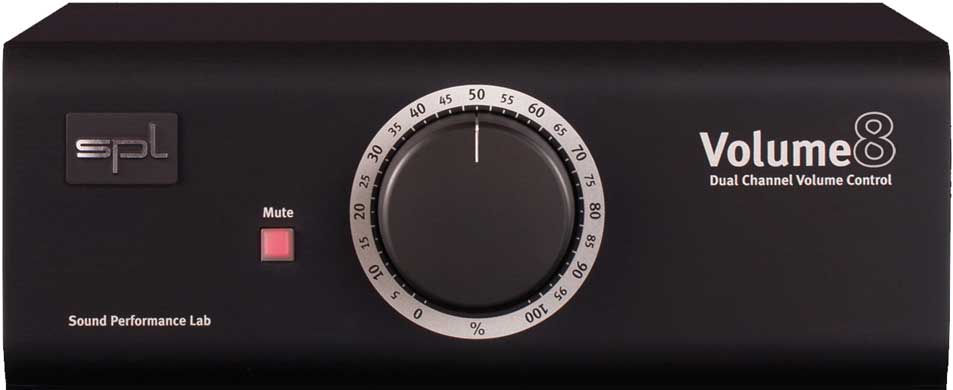

SPL Sound Performance Lab VOLUME8
Volume Contoller, 8ch #2608

OUR PART #:  VOLUME8

The SPL volume controllers are designed as a cost-effective alternative to the full-featured MTC 2381 and SMC 2489 models, and are dedicated solely to level control.
Learn More
Our Price: $699.00
List Price: $749.00
You save 7%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

SPL Sound Performance Lab VOLUME8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SPL volume controllers are designed as a cost-effective alternative to the full-featured MTC 2381 and SMC 2489 models, and are dedicated solely to level control. The Volume2 model is intended for stereo applications, while the Volume8 can control up to 8 channels. Both devices are designed with active circuitries to circumvent inevitable disadvantages of passive circuitry that result in impedance variation and therefore degraded linearity in frequency response. The Volume8 features High quality balancing stages with extremely good common mode rejection, and allows users of analog summing who don’t have monitoring facilities to cost-effectively improve their systems.

Features:

  • Custom designed, high end, eight-ganged potentiometer with invariable precision at each and every gain level
  • Illuminated passive mute switches from ALPS, relay switching for all channels
  • Input and outputs over DB-25 connectors (to multicore XLR or 1/4-inch TRS)
  • A high quality power supply with toroidal transformer
  • Input and outputs over DB-25 connectors (to multicore XLR or 1/4-inch TRS)
  • Massive, 45 mm/1.78-inch diameter aluminum knob ensure consistent, refined handling
  • The elegant, compact format housing (215 x 80 mm or 8.5 x 3.1 inch) allows for flexible desktop positioning near or below a computer monitor or generally saving space in positioning.

Specifications:

Inputs/Outputs:

  • Nominal Input Level: +4 dBu
  • Input Impedance: 22 kOhm
  • Output Impedance: ‹ 600 Ohm
  • Max. Input Level: › +20 dBu
  • Volume Gain: 8 to 4 dB

Measured Data:

  • Frequency Range: 10 Hz-100 kHz (100 kHz = -3 dB)
  • CMRR: › 60 dB @ 1 kHz
  • THD: & N (@ +15 dBu Input Level) › -100 dBu
  • S/N A-weighted: -102 dBu
  • Crosstalk L/R (@ 1 kHz): › -80 dBu
  • Dynamic Range: 120 dB

Power Supply:

  • Toroidal transformator: 155 VA
  • Fuse: 250 mA/230 V, 500 mA/115 V
  • Voltage Selector: 230/50 Hz ‹› 115 V/60 Hz
  • Power Consumption: ca. 15 W

Dimensions:

  • Housing: 8.5 x 3.1 x 8.8 inches
  • Depth incl. Potentiometer & Sockets: 9.8 inches
  • Weight: 4.18 lb
