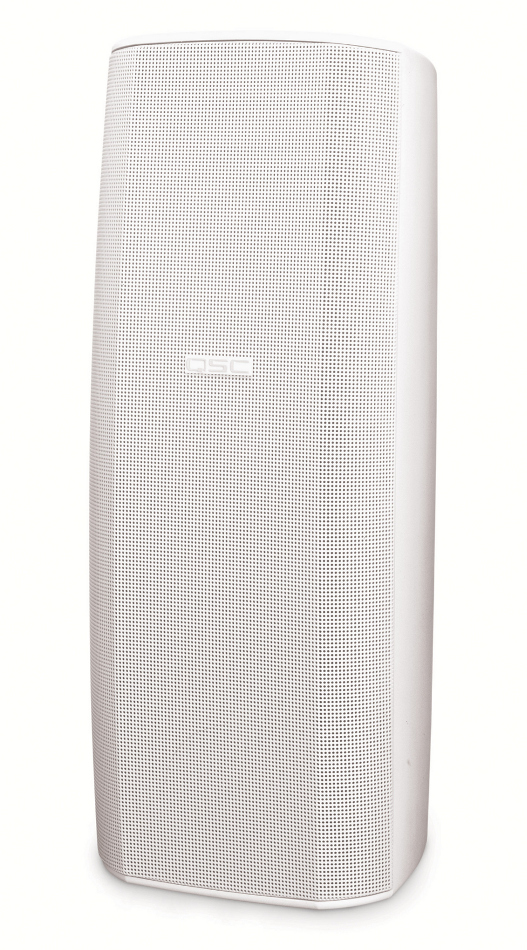

QSC AD-S282H
8" AcousticDesign 2-Way High Output Surface Mount Speaker in White

OUR PART #  AD-S282H-WHITE

Our Price: $830.00
(Low Price Guarantee)
In Stock

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates the Advanced Directivity™ rotatable waveguide.

The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

QSC AcousticDesign AD-S282H Features:

  • Contemporary Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
  • Dual 8-Inch, 2-Way System - in a lightweight, multipurpose enclosure featuring a powder coated aluminum grill.
  • Versatile Mounting Options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is built in.
  • Advanced Directivity™ RotatableWaveguide - (90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
  • Low Impedance and Transformer Versions - Standard 8 ohm system is selectable for passive or active operation while the AD-S282HT transformerversion provides taps for both 70V and 100V distributed system use.

QSC AcousticDesign AD-S282 Specifications:

  • Configuration:Compact two way, ported enclosure
  • Low Frequency Transducer: Dual 8" high-power, treated paper cone, 2" voice coil, neodymium magnet
  • High Frequency Transducer: 1" high-output compression driver
  • Frequency Response (±3 dB): 80 Hz - 27.7 kHz
  • Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz
  • Maximum Output (continuous): 119 dB SPL
  • Maximum Output (peak): 125 dB SPL
  • Nominal Impedance: 8 ohms (5.25 ohms minimum, 17.6 kHz, 64.22 ohms maximum, 2.56 kHz)
  • Power Rating: 450 W (IEC, 8 hours)
  • Recommended Max Amp Power: 900 W RMS
  • Sensitivity: 93 dB, 1 m, free field
  • Nominal Coverage: 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)
  • Bass Loading: Ported, tuned to 60 Hz
  • Transformer Type: Custom low-distortion laminated core, wide bandwidth design
  • Taps: 70V 200, 100, 50, 25 W; 100V 200,100, 50 W
  • Bypass: 8 ohm bypass on AD-S282HT
  • Material: Injectionmolded, weather-resistant, high-impact polystyrene
  • Finish: Black (paintable)
  • Weather Resistance: Yes
  • Grill: Heavy-duty powder-coated aluminum
  • Connectors: Barrier Strip, (switchable: passive/active on AD-S282H)
  • Mounting Hardware: Yoke Mount (included)
  • Weight: 27.7 lbs. net, 35.6 lbs. shipping

QSC AD-S282H
8" AcousticDesign 2-Way High Output Surface Mount Speaker in White

OUR PART #  AD-S282H-WHITE

Product Information:

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates the Advanced Directivity™ rotatable waveguide.

The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

QSC AcousticDesign AD-S282H Features:

  • Contemporary Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
  • Dual 8-Inch, 2-Way System - in a lightweight, multipurpose enclosure featuring a powder coated aluminum grill.
  • Versatile Mounting Options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount™ bracket is built in.
  • Advanced Directivity™ RotatableWaveguide - (90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
  • Low Impedance and Transformer Versions - Standard 8 ohm system is selectable for passive or active operation while the AD-S282HT transformerversion provides taps for both 70V and 100V distributed system use.

QSC AcousticDesign AD-S282 Specifications:

  • Configuration:Compact two way, ported enclosure
  • Low Frequency Transducer: Dual 8" high-power, treated paper cone, 2" voice coil, neodymium magnet
  • High Frequency Transducer: 1" high-output compression driver
  • Frequency Response (±3 dB): 80 Hz - 27.7 kHz
  • Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz
  • Maximum Output (continuous): 119 dB SPL
  • Maximum Output (peak): 125 dB SPL
  • Nominal Impedance: 8 ohms (5.25 ohms minimum, 17.6 kHz, 64.22 ohms maximum, 2.56 kHz)
  • Power Rating: 450 W (IEC, 8 hours)
  • Recommended Max Amp Power: 900 W RMS
  • Sensitivity: 93 dB, 1 m, free field
  • Nominal Coverage: 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)
  • Bass Loading: Ported, tuned to 60 Hz
  • Transformer Type: Custom low-distortion laminated core, wide bandwidth design
  • Taps: 70V 200, 100, 50, 25 W; 100V 200,100, 50 W
  • Bypass: 8 ohm bypass on AD-S282HT
  • Material: Injectionmolded, weather-resistant, high-impact polystyrene
  • Finish: Black (paintable)
  • Weather Resistance: Yes
  • Grill: Heavy-duty powder-coated aluminum
  • Connectors: Barrier Strip, (switchable: passive/active on AD-S282H)
  • Mounting Hardware: Yoke Mount (included)
  • Weight: 27.7 lbs. net, 35.6 lbs. shipping
