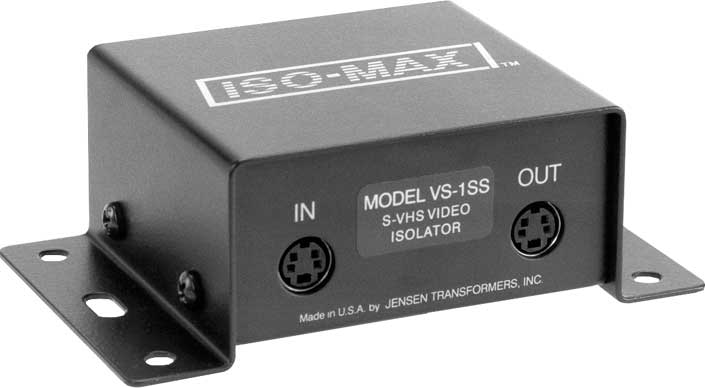

Jensen Transformers VS-1SS
S-Video Isolation Transformer (for Separate Video or Y/C Video Signals)


Using separate transformers for Y (luminance) and C (chrominance)...
Learn More
Our Price: $135.58
List Price: $141.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Jensen Transformers VS-1SS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Using separate transformers for Y (luminance) and C (chrominance), this isolator eliminates video "hum bars" as well as the often-associated audio "hum" or "buzz" in multimedia entertainment systems, by breaking the so-called "ground loop".  Mounting holes allow easy horizontal or vertical mounting to standard rack rails.

  • Very high ground isolation: 120 dB CMRR typ at 60 Hz
  • Wide bandwidth: -3 dB at 10 Hz and 20 MHz
  • High input to output withstand voltage: 350 V RMS min. at 60 Hz
  • Precision impedance: typical VSWR under 1.22 up to 20 MHz
  • Low insertion loss: 0.72 dB typical
  • 15 MHz Bandwidth keeps pictures looking sharp
  • High quality gold-plated connectors for reliability

To be the first to review this item, click here.
