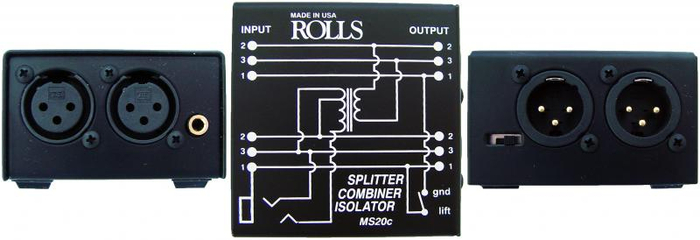

Rolls MS20c
Mic Splitter / Combiner / Isolator

OUR PART #  MS20C

Our Price: $44.00
List Price: $60.00
You save 27%! (Low Price Guarantee)
In Stock

Recommended Accessories

The MS20c Splitter / Combiner / Isolator will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or simply isolate a balanced line for buzz or hum elimination. Please note that when combining two condenser microphones, phantom power voltage is passed to only one of the microphones due to the internal isolation transformer.

Features:

  • Splits balanced XLR input, or 1/8" input to two balanced XLR outputs
  • Combines two balanced XLR signals to one XLR output
  • Will pass phantom power to one microphone
  • One signal is transformer isolated from the other
  • Ground Lift switch for noise elimination

Specifications:

  • Input Impedance: XLR 600 ohm, 1/8" (3.5mm) 10K ohm
  • Output Impedance: 600 ohm
  • Frequency Response: 35 Hz - 20 kHz
  • Max Level: +26 dBm
  • Dimensions: 3" x 2.25" x 1.2"
  • Weight: 10 Ounces
