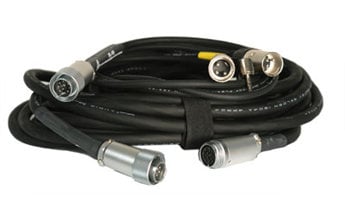

Sound Devices XL-10
Cable Hirose 10pin/2-XLR

OUR PART #  XL-10

Our Price: $266.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The XL-10 is a high-quality multi-pin breakout and extension cable designed specifically for Sound Devices 442 Field Mixer. Built for Sound Devices by AVCable.com, the XL-10 provides easy access to the balanced outputs and stereo return A connection on the multi-pin of the 442. The XL-10 can be used with or without its 20-foot extension length.

  • Low capacitance, highly-flexible Belden multipair cable with superior EMI rejection.
  • Neutrik XLR, Hirose Multipin, and Switchcraft right angle 3.5 mm connectors
  • In-line Hirose connections allow extension segment to be removed—no extension length is needed
  • Strain-relief shrink wrap at all connector points
  • 10-pin Hirose male to 10-pin Hirose female for extension length, wired straight-through
  • 10-pin Hirose male to XLRM-3 (x2) and 1/8-inch male
  • 20 ft extension length, 2 ft breakout length, approximate, from connector to connector

Click to download

Sound Devices XL-10
Cable Hirose 10pin/2-XLR

OUR PART #  XL-10

Product Information:

The XL-10 is a high-quality multi-pin breakout and extension cable designed specifically for Sound Devices 442 Field Mixer. Built for Sound Devices by AVCable.com, the XL-10 provides easy access to the balanced outputs and stereo return A connection on the multi-pin of the 442. The XL-10 can be used with or without its 20-foot extension length.

  • Low capacitance, highly-flexible Belden multipair cable with superior EMI rejection.
  • Neutrik XLR, Hirose Multipin, and Switchcraft right angle 3.5 mm connectors
  • In-line Hirose connections allow extension segment to be removed—no extension length is needed
  • Strain-relief shrink wrap at all connector points
  • 10-pin Hirose male to 10-pin Hirose female for extension length, wired straight-through
  • 10-pin Hirose male to XLRM-3 (x2) and 1/8-inch male
  • 20 ft extension length, 2 ft breakout length, approximate, from connector to connector
