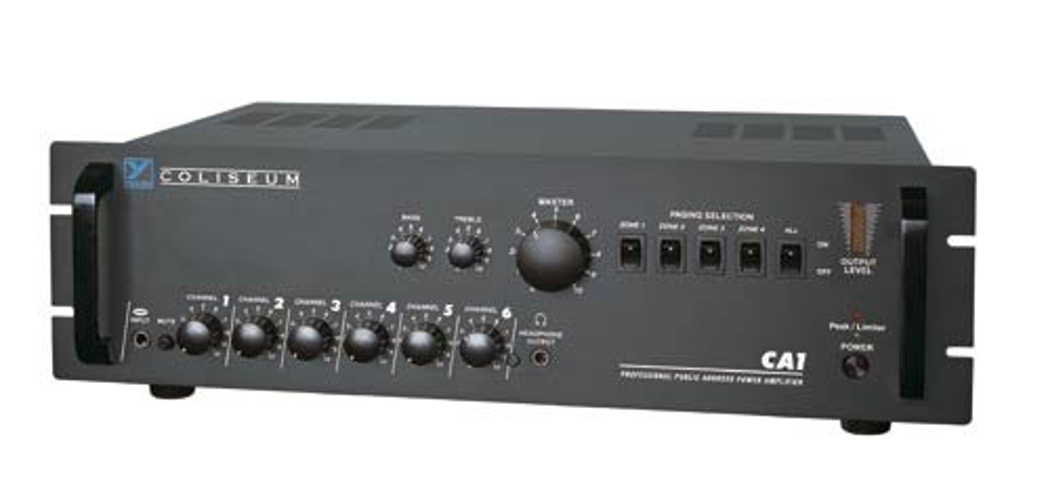

Yorkville CA1-YORKVILLE Power Amp/Mixer 180 Watts @ 4 Ohms/70V

The Yorkville Coliseum CA1 public address amplifier has been designed specifically for installations where a versatile paging system with high quality music playback is required.

Ideal for restaurants, small clubs, offices and retail environments where a simple and reliable system capable of servicing multiple paging zones is required. Multiple inputs for microphone or source material, and voice activated paging from either a microphone or telephone matrix means the CA1 can be used in virtually any application.

Versatile input mixing capabilities make the CA1 the solution for small churches, boardrooms and conference room PA applications. Unlike most installation amplifiers in this class, user selectable phantom power is available on three channels to drive condenser microphones, the type most commonly used on podiums or as a lavaliere (tie clip) microphone.

XLR / TRS balanced combi-jack inputs and attenuated RCA unbalanced inputs ensure the CA1 system can interface with any source (CD, Cassette, Satellite Tuner, DVD or video system) your installation may require.

Capable of driving either a 4-ohm speaker load, or four separate 70-volt speaker systems (one ‘system’ per zone), the CA1 system delivers 180 watts (mono). A pre-amp output is available to feed an auxiliary power amplifier or active subwoofer to enhance the system, or to feed video or audio recording equipment.

Yorkville CA1 Specifications:

• Number of channels: 6
• Inputs – ¼" /XLR Combination: 3
• Inputs – RCA (unbalanced): 2
• Phantom Power: Yes
• Headphone Monitor Features: Yes – main output
• Record Outputs: yes
• Mixer – S/N radio: Greater than 55 dB
• Amp A - Power Output @ 4 Ohms: 180 Watts
• Amp A - Power Output –other: 180 Watts 70-volts
• THD - 1kHz (dB): Less than 1%
• Cooling: Passive
• Finish: Black
• Chassis Construction: Steel
• Rackmount: Yes
• Other Features: Zone Paging / Telephone interface
• Dimensions (DxWxH): 12" x 19" x 6"
• Weight: 24 lbs.
