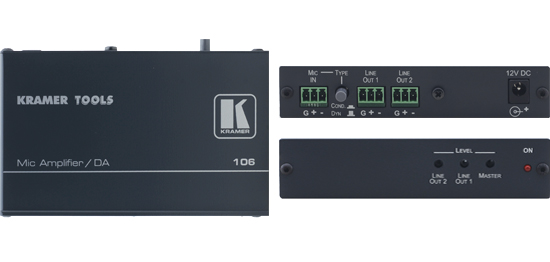

Kramer 106
1:2 Microphone to Line Distribution Amplifier


Kramer Electronics' 106 is a high-quality distribution amplifier for balanced mono microphone signals.
Learn More
Our Price: $136.00
List Price: $170.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Kramer 106
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer Electronics' 106 is a high-quality distribution amplifier for balanced mono microphone signals.  It takes one dynamic or condenser microphone input and distributes the signal to two line-level outputs.


  • Mic Input Selector - Condenser or dynamic
  • Phantom Power - 48V DC
  • S/N Ratio - 81dB
  • Level (Gain) Controls - Individual and master output adjustments
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.


  • INPUT:1 balanced mono microphone on a 3-pin terminal block connector.
  • OUTPUTS:2 balanced mono line outputs on 3-pin terminal block connectors.
  • MAX. OUTPUT LEVEL: 27Vpp (22dBu)
  • BANDWIDTH: >40kHz
  • S/N RATIO: 81dB
  • CONTROLS: Mic. type selector pushbutton, -14dB to +68dB LINE OUT trimmers (master trimmer at max.), +37dB to +68dB master trimmer (line out trimmer at max.)
  • COUPLING: Input, AC; output, DC
  • AUDIO THD + NOISE: 0.18%
  • AUDIO 2nd HARMONIC: 0.16%
  • POWER SOURCE: 12V DC, 132mA
  • DIMENSIONS: 4.7" W x 2.95" D x 0.98" H (12 x 7.5 x 2.5c m)
  • WEIGHT: Approx. 0.66 lb (0.3 kg) approx.
  • ACCESSORIES:Power supply, mounting bracket
