Product Overview

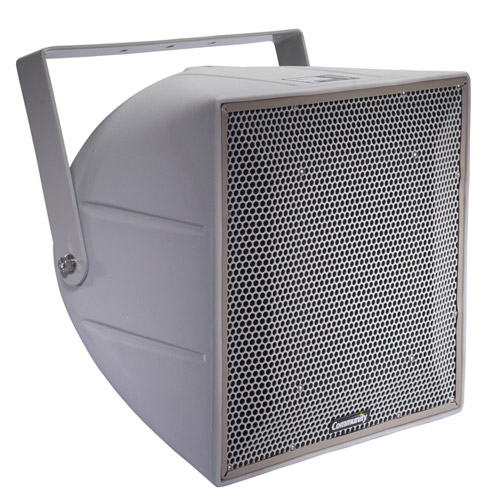

A 3-way horn loaded weather-resistant loudspeaker system, the Community R.5HPT is engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. Audiences no longer need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously. Each system is backed by Community's five-year product warranty and fifteen-year enclosure warranty.
Community R.5HPT Includes:
- (1) R.5HPT unit
- (1) Yoke bracket, Light Grey
- (1) Aiming strap
Community R.5HPT Features:
- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- Five-year product warranty / Fifteen-year enclosure warranty
Community R.5HPT Specifications:
- Loudspeaker Type: 3-way, horn loaded coaxial, weather-resistant
- Operating Range:
- 90 Hz to 16 kHz
- 125 Hz to 12500 Hz (+/- 6 dB)
- Max Input Ratings: 200W, 70/100V
- Recommended Power Amplifier:
- 25W to 200W @ 70 Volts
- 50W to 200W @ 100 Volts
- Sensitivity (1W/1m):
- 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
- 106 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output on 200W Tap: 128 dB SPL
- 200W Nominal Impedance: 25 Ohms
- 200W Minimum Impedance: 12.1 Ohms @ 11 kHz
- Nominal –6dB Beamwidth:
- H: 60° (+32° / -17°, 2 kHz to 10 kHz)
- V: 40° (+33° / -1°, 2 kHz to 10 kHz)
- Axial Q / DI: 20.5 / 13.1, 2 kHz to 12.5 kHz
- Crossover Frequency: 600 Hz / 4 kHz
- Recommended Signal Processing: 70 Hz high pass filter
- Drivers:
- LF: (1) 12” weather treated, Ferrofluid-cooled
- MF: (1) M200, Ferrofluid-cooled
- HF: (1) 1” exit, titanium free, Ferrofluid-cooled
- Driver Protection: None
- Input Connection: 12 foot (4 m) UV-resistant #18 gauge multi-conductor cable
- Controls: None
- Enclosure: Rotomolded LLDPE, Light Grey
- Mounting/Rigging Provisions: (5) 3/8-16 rigging points
- Grille: 3-layer WeatherStop™, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
- Dimensions (HxWxD): 16" x 16" x 16.187" (406.4 x 406.4 x 411.15mm)
- Weight: 45.5 lbs (20.6 kg)
- Optional Accessories (sold separately): PMB Series pole mount brackets
