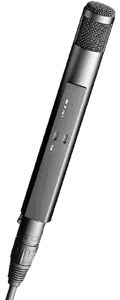

Sennheiser MKH 30-P48 Figure-8 Condenser Mic

The symmetrical transducer design of the MKH 30 produces an unusually wide and smooth frequency response. It is particularly suited to soloists and small instrumental groups and can also serve as an ‘S’ microphone in MS stereo applications. As a support microphone it is particularly useful in the effective suppression of sounds from adjacent sound sources.

The sophisticated MKH Series microphones incorporate Sennheiser technology into condenser mics of superlative quality. all over, the MKH line provides a flexible array of polar patterns and sizes, all optimized for totally transparent, "colorless" sound reproduction. RF condenser microphones constitute a unique, sophisticated class of condenser microphones. They fulfil the very highest demands made on sound quality and versatility, and are renowned for their high quality, highly accurate sound reproduction, ruggedness, all-weather operation, wide frequency response and extremely low inherent self-noise.

Used by recording studios, film and television production companies, and broadcast professionals

Includes

• 1 MKH30
• 1 MZS80 Shock Mount
• 1 MZW41 Windshield

Features

• Microphone with 'Figure 8' Pick-Up Pattern
• Highly symmetrical and frequency-independent pick-up pattern
• High rejection of lateral sounds
• Wide, Flat Frequency Response
• Exceptionally Low Inherent Self-Noise
• Switchable Roll-Off Filter to Compensate for Proximity Effects at a Distance of Approx. 0.5m
• Switchable Pre-Attenuation

Specifications

• Dimensions: Dia. 0.98" x L 6.85"
• Frequency Response (Microphone): 40Hz to 20kHz
• Sensitivity in Free Field, No Load (1 kHz): 25mV/Pa ±1 dB
• Nominal Impedance: 150Ω
• Equivalent Noise Level: 13(19)dB
• Equivalent Noise Level Weighted as per CCIR468-3: 22(28)dB
• Maximum Sound Pressure Level (Passive): 134dB / 1kHz
• Current Consumption: mA
• Battery Specification: 48 ± 4V Phantom
