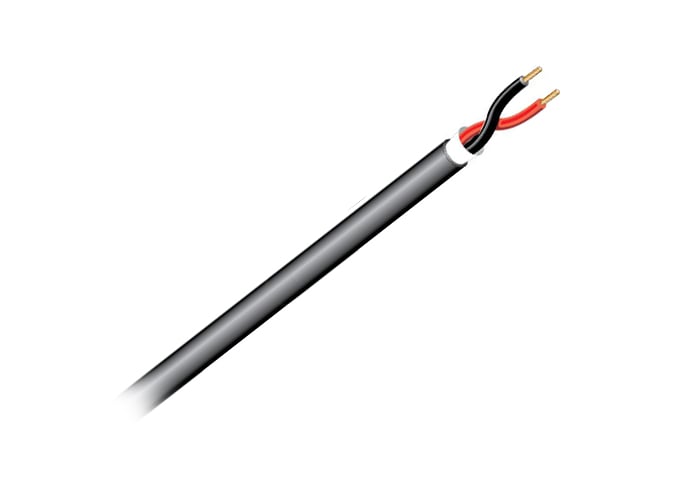

West Penn AQ226
Aquaseal Wire 14Ga 1000ft

OUR PART #  AQ226

Our Price: $504.23
List Price: $766.04
You save 34%! (Low Price Guarantee)
In Stock

14/2 stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket. Suitable for outdoor use (direct burial) and indoor trays, allows a variety of uses for low-voltage industrial process control circuits, power-limited circuits, power-limited fire alarm circuits, power limited tray cable (PLTC).

Construction Parameters

  • Conductor: 14 AWG Bare Copper
  • Stranding: 19x27
  • Insulation Material: PVC with Nylon
  • Insulation Thickness: PVC: 0.015"; Nylon: .005"
  • Number of Conductors: 2 (1 pair)
  • Shield: None
  • Drain: None
  • Water-blocking tape: 2 Ply water-swellable tape
  • Jacket Material: Sunlight/Moisture Resistant PVC
  • Jacket Thickness: 0.040"
  • Overall Cable Diameter: 0.310"
  • Approximate Cable Weight: 59 lbs/1m
  • Flame Rating: UL 1685 Vertical tray

Electrical & Environmental Properties

  • Temperature Rating: -20 to 60 deg C
  • Operating Voltage: 300 V RMS
  • Max. Capacitance Between Conductors @ 1 kHz: 32pf/ft
  • DC Resistance per Conductor @ 20 deg C: 2.7 ohms/ 1m
  • Insulation colors: Black, Red
  • Jacket color: Black

Mechanical Properties

  • Max. recommended pull tension: 84 lbs.
  • Min. bend radius (install): 2.7"

Click to download

West Penn AQ226
Aquaseal Wire 14Ga 1000ft

OUR PART #  AQ226

Product Information:

14/2 stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket. Suitable for outdoor use (direct burial) and indoor trays, allows a variety of uses for low-voltage industrial process control circuits, power-limited circuits, power-limited fire alarm circuits, power limited tray cable (PLTC).

Construction Parameters

  • Conductor: 14 AWG Bare Copper
  • Stranding: 19x27
  • Insulation Material: PVC with Nylon
  • Insulation Thickness: PVC: 0.015"; Nylon: .005"
  • Number of Conductors: 2 (1 pair)
  • Shield: None
  • Drain: None
  • Water-blocking tape: 2 Ply water-swellable tape
  • Jacket Material: Sunlight/Moisture Resistant PVC
  • Jacket Thickness: 0.040"
  • Overall Cable Diameter: 0.310"
  • Approximate Cable Weight: 59 lbs/1m
  • Flame Rating: UL 1685 Vertical tray

Electrical & Environmental Properties

  • Temperature Rating: -20 to 60 deg C
  • Operating Voltage: 300 V RMS
  • Max. Capacitance Between Conductors @ 1 kHz: 32pf/ft
  • DC Resistance per Conductor @ 20 deg C: 2.7 ohms/ 1m
  • Insulation colors: Black, Red
  • Jacket color: Black

Mechanical Properties

  • Max. recommended pull tension: 84 lbs.
  • Min. bend radius (install): 2.7"

Click to download
