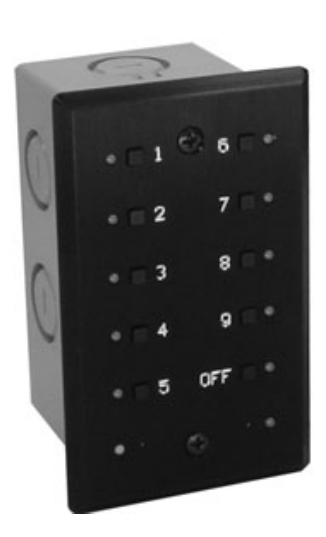

Doug Fleenor Design PRE10-A 10-Button Wall Mounted DMX Controller

Save up to 10 of your favorite lighting presets in the DMX512 based PRE10-A architectural system from Doug Fleenor Designs. Working in conjunction with a lighting console, presets are captured via programmed output and stored for quick use. With automatic switching, lighting consoles and the PRE10-A can operate independently from one another, holding a look if one unit goes offline or simplifying control when needed. Save lecture hall looks or general stage looks for visiting artists, each preset can be assigned a unique fadetime and simply recalled at the touch of a button.

Features

• Records up to 10 Presets
• Assign crossfade time from 0 - 999 seconds in length
• Solid aluminum, one-gang faceplate
• Works in conjunction with lighting console
• Connect via power (2 wires) and DMX 512 (3 wires)

Specifications

• Connector: Phoenix Contact MSTB series 5 position two part terminal block
• Model: MSTB 2,5/5-ST-5,08 Order Number: 17 57 04 8
• Connector pin out:
  • 1: DMX512 common
  • 2: DMX512 data -
  • 3: DMX512 data +
  • 4: Supply common (tied to pin1)
  • 5: Supply “hot”
• Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
• Indicators: Ten green preset indicator LEDs
• One red Lockout / Record LED
• User controls: Ten preset push buttons
  • One recessed record push button
  • One recessed fade time push button
• Option jumpers: Primary/Secondary mode selection
• Previous preset / Hold last look mode selection
• Power input: 9 to 15 volts AC or DC / 200mA per station
• (A 10 volt class 2 “doorbell” transformer is recommended for fixed installations)
• Color: Black anodized with silver engraved nomenclature
• Size: Faceplate: 4.5"h X 2.75"w X 0.2"d
• Faceplate: rear inset: 4.05"h X 2.4"w X 0.1"d
• Electrical box minimum inside dimensions: 3.5"h X 2.1"w X 1.25"d
