Switchcraft QGPK116FB
Patchbay, QG Female


Patchbay with 16 female contacts, 1.75 inches. The QG Patchbay features a 19" rack unit loaded with E Series QG connectors.
Learn More
Our Price: $124.46
List Price: $191.46
You save 35%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Switchcraft QGPK116FB
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Patchbay with 16 female contacts, 1.75 inches.

The QG Patchbay features a 19" rack unit loaded with E Series QG connectors. These XLR’s have the same panel cut-out, male or female, silver-plated pins or contacts, and a black finish. All connectors have solder cup terminals for easy soldering and the inserts are removable from the back, allowing for easy changes. The one rack unit height version comes with 16 male, or 16 female, or 8 male and 8 female connectors. The two rack unit version comes with 16 male and 16 female connectors. We also offer the unit without connectors, but with the panel cut-outs already punched out. All versions have a rugged cable tie bar, which takes the weight of the cabling away from the solder connections.


  • Available in 1RU or 2RU versions
  • Available with or without the connectors
  • E Series connectors are silver-plated, 3 pins/contacts with black finish
  • Cable tie bar takes the weight of the cables off the solder terminations
  • Rugged aluminum channel increases durability
  • Silk-screen designation area makes it easy to re-label channels


  • Housing: Die-cast, black velvet finish
  • Inserts: Glass-filled thermoplastic
  • Pin/Contact: Copper alloy, silver-plated
  • Latch Release: Steel, nickel-plated
  • Insert Locking Cam: Die-cast zinc
  • Frame: Aluminum, black anodized
  • Cable Tie Bar: Steel, black epoxy

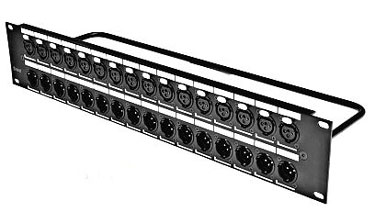

Note: Image Shows QGPK332MFB model.
