Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V

OUR PART #: SYSTEM-12

Copied to clipboard

A complete 2' x 2' ceiling tile replacement loudspeaker system, Quam's SYSTEM 12 is UL Listed, features shallow depth, and is lightweight, consisting of an 8C5PAX - 8" O.D. ...Read more

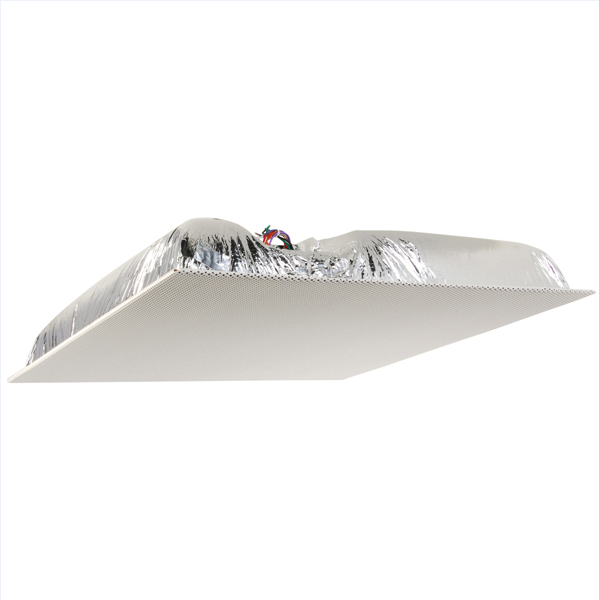

Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V Image 1

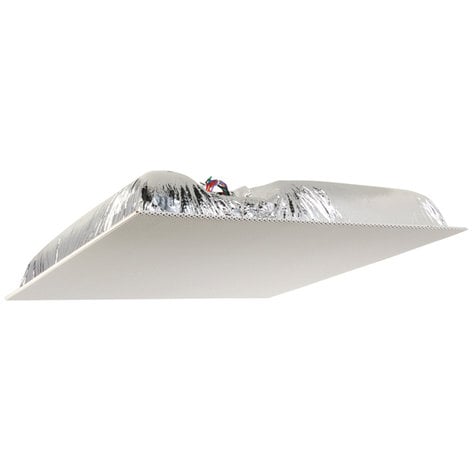

Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V Image 2
Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V Image 3
Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V Image 4
Quam SYSTEM 12 24"x24" Tile Replacement Loudspeaker System, 25V / 70V
Our Price: $109.93
List Price: $131.42
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A complete 2' x 2' ceiling tile replacement loudspeaker system, Quam's SYSTEM 12 is UL Listed, features shallow depth, and is lightweight, consisting of an 8C5PAX - 8" O.D. loudspeaker with a 5 oz. magnet as well as a TBLU - 5W-25 / 70 V transformer. Its molded-fiber enclosure is 1,412 CID. The steel baffle includes standard perforation and four (4) seismic tie-off points. A cable clamp is also included. No assembly required.

Features

  • Complete loudspeaker assembly with 8" frame loudspeaker and perforated steel baffle
  • 5W 25 / 70V transformer
  • Mounts parallel to floor-plane in a 24" wide suspended-ceiling tile grid
  • Great for signal tones, voice and music applications
  • 12W RMS power-rating

Specifications

  • Average Sensitivity: 92dB SPL, 1W / 1M
  • Loudspeaker Power Rating: 12W RMS EIA 426A Standard
  • Maximum Power rating: 15W @ 8Ω
  • Calculated Output: 99dB - SPL 5W / 1M
  • Magnet Type and Weight: BeFe Ceramic, 5oz. Nominal
  • Frequency Response: 65Hz - 17kHz - EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6dB / 2kHz, Half-space
  • Audio Connection: 4" Color-Coded Leads
  • Unit Weight: 6.15lbs.
  • Note: further information can be found within the "System 12 Specifications" located under the "Documentation" tab above.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download

Product Reviews

Reviewed by 1 customer
(1 is Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

David P on 03/04/2020 Verified - This reviewer has purchased this product

Drop right in & connect the wires. Can't get any easier !! I love these things !!!
