Quam SYSTEM 5
12"x24" Tile Replacement Speaker System

OUR PART #  SYSTEM-5

Our Price: $48.92
List Price: $71.30
You save 31%! (Low Price Guarantee)
In Stock

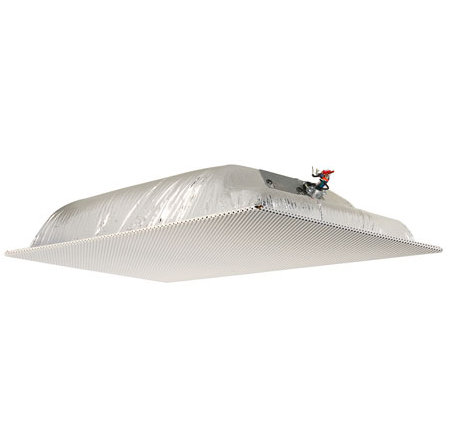

The Quam SYSTEM 5 is a complete, UL Listed, shallow depth, lightweight, 1' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W-25/70V transformer. Molded fiber enclosure is 617 CID. Powder coated steel baffle with standard perforation and four (4) seismic tie-off points. The cable clamp and one (1) 24" "T" rail are included. No assembly required.

Quam SYSTEM 5 Specifications:

  • Average Sensitivity: 92 dB SPL, 1W/1M
  • Loudspeaker Power Rating: 12W RMS EIA 426A Standard
  • Maximum Power Rating: 15W @ 8 Ohms
  • Calculated Output: 99 dB-SPL 5W/1M
  • Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
  • Frequency Response: 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6 dB / 2 kHz, Half space
  • Audio Connection: 4” Color-Coded Leads
  • Unit Weight: 3.85 Lbs

Quam SYSTEM 5
12"x24" Tile Replacement Speaker System

OUR PART #  SYSTEM-5

Product Information:

The Quam SYSTEM 5 is a complete, UL Listed, shallow depth, lightweight, 1' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5 oz. magnet and a TBLU - 5W-25/70V transformer. Molded fiber enclosure is 617 CID. Powder coated steel baffle with standard perforation and four (4) seismic tie-off points. The cable clamp and one (1) 24" "T" rail are included. No assembly required.

Quam SYSTEM 5 Specifications:

  • Average Sensitivity: 92 dB SPL, 1W/1M
  • Loudspeaker Power Rating: 12W RMS EIA 426A Standard
  • Maximum Power Rating: 15W @ 8 Ohms
  • Calculated Output: 99 dB-SPL 5W/1M
  • Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
  • Frequency Response: 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6 dB / 2 kHz, Half space
  • Audio Connection: 4” Color-Coded Leads
  • Unit Weight: 3.85 Lbs
