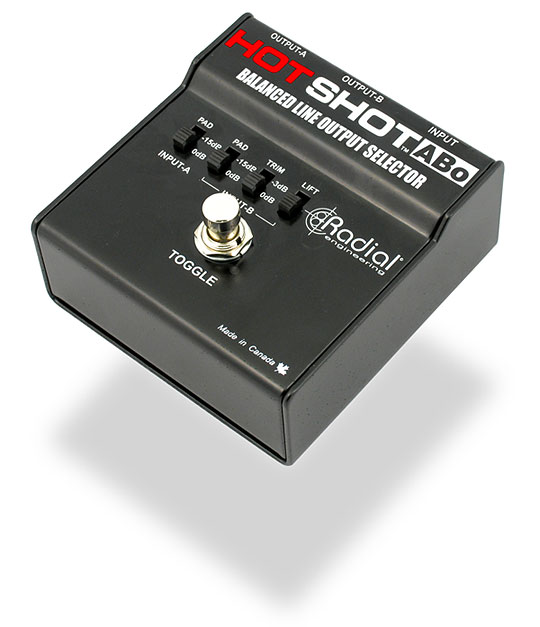

Radial Engineering HOTSHOTABO
Single to Dual XLR Line Output Selector

OUR PART #  HOTSHOTABO

Our Price: $89.99
List Price: $115.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The HotShot ABo is a balanced signal output selector that employs a latching switch to allow one to connect a sound source to a choice of two destinations. The HotShot ABo is completely passive and therefore does not require powering of any type to make it work.

The HotShot ABo can be used in a variety of applications including driving two channels on a mixing console for dry and wet effects routing; to divert a mic from the PA system to the monitors or intercom; for temporarily muting the signal such as when coughing; and for talkback mic control.

Features:

  • On-stage line output signal AB redirector
  • Toggle switch for one-push operation
  • Pads allow using devices with different signal levels
  • Ground lift to eliminate buzz caused by ground loops
  • Heavy-duty construction, switches and components

Specifications:

  • Circuit type: Passive true-bypass
  • Inputs: XLR-F
  • Outputs: XLR-M x 2
  • Output pads: Output-A: -15dB switch
  • Output-B: -15dB switch, -6dB 'trim' switch
  • Ground lift: LIFT switch - Input-B pin-1
  • Footswitch: Heavy-duty high-cycle
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 3.6"w x 3.75"d x 2"h, (92 x 99 x 51mm)
  • Weight: 1.1 lb (0.5 kg)
  • Warranty: Radial 3-year limited warranty

Click to download

Radial Engineering HOTSHOTABO
Single to Dual XLR Line Output Selector

OUR PART #  HOTSHOTABO

Product Information:

The HotShot ABo is a balanced signal output selector that employs a latching switch to allow one to connect a sound source to a choice of two destinations. The HotShot ABo is completely passive and therefore does not require powering of any type to make it work.

The HotShot ABo can be used in a variety of applications including driving two channels on a mixing console for dry and wet effects routing; to divert a mic from the PA system to the monitors or intercom; for temporarily muting the signal such as when coughing; and for talkback mic control.

Features:

  • On-stage line output signal AB redirector
  • Toggle switch for one-push operation
  • Pads allow using devices with different signal levels
  • Ground lift to eliminate buzz caused by ground loops
  • Heavy-duty construction, switches and components

Specifications:

  • Circuit type: Passive true-bypass
  • Inputs: XLR-F
  • Outputs: XLR-M x 2
  • Output pads: Output-A: -15dB switch
  • Output-B: -15dB switch, -6dB 'trim' switch
  • Ground lift: LIFT switch - Input-B pin-1
  • Footswitch: Heavy-duty high-cycle
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 3.6"w x 3.75"d x 2"h, (92 x 99 x 51mm)
  • Weight: 1.1 lb (0.5 kg)
  • Warranty: Radial 3-year limited warranty

Click to download
