Radial Engineering HOTSHOTABI
Dual to Single XLR Line Input Selector

OUR PART #  HOTSHOTABI

Our Price: $89.99
List Price: $115.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

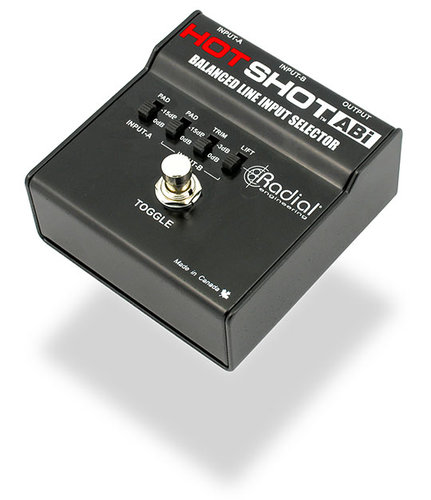

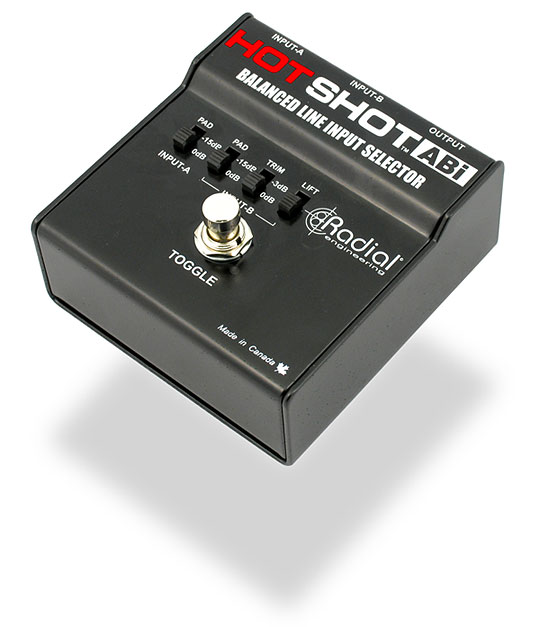

The HotShot ABi is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work.

The HotShot ABi is ideal for applications such as switching between two dynamic microphones on a stage or selecting between two audio sources. The latching switch also opens the door for other useful operations: These include using the HotShot ABi as a mute to turn off a microphone; to select between two wireless receivers for live sound system backup; for stereo guitars it can be used to select between two instruments; and for community hall assemblies, it provides the moderator with remote control over two audience microphones.

Features:

  • On-stage line input signal AB redirector
  • Toggle switch for one-push operation
  • Pads allow using devices with different signal levels
  • Ground lift to eliminate buzz caused by ground loops
  • Heavy-duty construction, switches and components

Specifications:

  • Circuit type: Passive true-bypass
  • Inputs: XLR-F x 2
  • Outputs: XLR-M
  • Input pads: Input-A: -15dB switch; Input-B: -15dB switch, -6dB 'trim' switch
  • Ground lift: LIFT switch - Input-B pin-1
  • Footswitch: Heavy-duty high-cycle
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 3.6"w x 3.75"d x 2"h, (92 x 99 x 51mm)
  • Weight: 1.1 lb (0.5 kg)
  • Warranty: Radial 3-year limited warranty

Click to download

Radial Engineering HOTSHOTABI
Dual to Single XLR Line Input Selector

OUR PART #  HOTSHOTABI

Product Information:

The HotShot ABi is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work.

The HotShot ABi is ideal for applications such as switching between two dynamic microphones on a stage or selecting between two audio sources. The latching switch also opens the door for other useful operations: These include using the HotShot ABi as a mute to turn off a microphone; to select between two wireless receivers for live sound system backup; for stereo guitars it can be used to select between two instruments; and for community hall assemblies, it provides the moderator with remote control over two audience microphones.

Features:

  • On-stage line input signal AB redirector
  • Toggle switch for one-push operation
  • Pads allow using devices with different signal levels
  • Ground lift to eliminate buzz caused by ground loops
  • Heavy-duty construction, switches and components

Specifications:

  • Circuit type: Passive true-bypass
  • Inputs: XLR-F x 2
  • Outputs: XLR-M
  • Input pads: Input-A: -15dB switch; Input-B: -15dB switch, -6dB 'trim' switch
  • Ground lift: LIFT switch - Input-B pin-1
  • Footswitch: Heavy-duty high-cycle
  • Construction: 14 gauge steel, baked enamel finish
  • Size: 3.6"w x 3.75"d x 2"h, (92 x 99 x 51mm)
  • Weight: 1.1 lb (0.5 kg)
  • Warranty: Radial 3-year limited warranty

Click to download
