RME ADI-2
AD/DA Converter, 2 Channel, 192kHz/24 Bit

OUR PART #:  ADI-2

The ADI-2 is a both compact and extremely flexible 2-channel Hi-End AD/DA-converter.
Learn More
Our Price: $1,999.00
Write the first review.
RME ADI-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The ADI-2 is a both compact and extremely flexible 2-channel Hi-End AD/DA-converter. The small 9.5" unit offers top notch AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Whatever it is - simply get connected!

Key features of this extraordinary flexible converter are balanced inputs and outputs, monitoring via headphone out, SteadyClock for optimal converter quality, 3-stage hardware input and output level control, and its capability to run on a wide range of power supplied.

The ADI-2 is equipped with a balanced stereo line input via two Neutrik XLR/phones combo jacks, a balanced stereo line output with XLR plus separate and simultaneously active phone jacks, as well as an adjustable headphone output.

The analog inputs and outputs use the same circuit design as RME's famous ADI-8 DS, guaranteeing outstandingly low noise and distortion. Three different settings for the input and output levels each provide perfect compatibility on analog domain. A further highlight is SteadyClock™, a proprietary clock technology for maximum jitter suppression. SteadyClock guarantees superb sound quality completely independent from the quality of the current reference clock. The ADI-2 uses the latest generation of AD/DA-converters capable of up to 192 kHz sampling frequency at S/N ratios up to 119 dBA.

But the ADI-2 has more to offer than tremendous sound, it also gives you exciting digital connectivity. Its transformer-balanced coaxial (RCA) SPDIF I/O has switchable Channel Status to make it fully AES/EBU compatible. The optical TOSLINK I/Os can handle up to 192 kHz and also serve as ADAT I/O with up to 96 kHz sample rate. You can even use SPDIF input and ADAT output or vice versa in AD/DA mode.

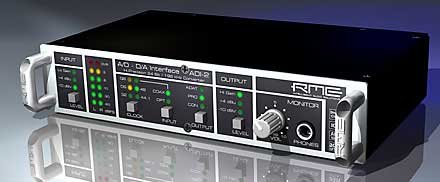

The clear layout and the distinct labeling of the front panel with its functional buttons, the informative status displays, a 6 LED level meter as well as the tidy functional back panel make it easy to operate the unit right out of the box. Protective rack handles and a strain-relief for power cord and audio cables are further useful details that make the ADI-2 even more unique.

Following the 'Universal Power Supply' philosophy of RME's Digiface, Multiface, QuadMic und OctaMic, the ADI-2 comes with an external switching power supply. The unit's additional internal switching power supply has been specially designed and optimized for audio applications. It accepts any voltage from 7 to 30 V, be it AC or DC, and even runs on batteries and rechargeable batteries.

RME ADI-2 Specifications:

  • Digital Inputs
    • General
      • Lock Range: 28 kHz – 200 kHz
      • Jitter suppression: > 50 dB (2.4 kHz)
      • Jitter when synced to input signal: < 1 ns
      • Accepts Consumer and Professional format
    • SPDIF coaxial
      • 1 x RCA, according to IEC 60958
      • High-sensitivity input stage (< 0.3 Vpp)
      • AES/EBU compatible (AES3-1992)
    • SPDIF optical
      • 1 x optical, according to IEC 60958
      • ADAT compatible
  • Analog Outputs
    • XLR
      • Output level switchable +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFS
      • Signal to Noise ratio (SNR) @ +7/+13/+19 dBu: 117 dB RMS unweighted, 120 dBA
      • Signal to Noise ratio (SNR) @ +1 dBu: 115,4 dB RMS unweighted, 118,9 dBA
      • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
      • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz
      • Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz
      • Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz
      • Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz
      • THD @ -1 dBFS: -112 dB, 0.00025 %
      • THD+N @ -1 dBFS: -110 dB, 0.00032 %
      • THD @ -3 dBFS: -116 dB, 0.00016 %
      • Channel separation: > 120 dB
      • Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
    • Chinc, As output XLR, but:
      • Output: 6.3 mm TS jack, unbalanced
      • Output level 6 dB lower than XLR (-5 dBu to +13 dBu @ 0 dBFS)
      • Signal to Noise ratio (SNR) @ +13 dBu: 117 dB RMS unweighted, 120 dBA
      • Signal to Noise ratio (SNR) @ +1/+7 dBu: 114/116 dB RMS unweighted, 117/119 dBA
      • Signal to Noise ratio (SNR) @ -5 dBu: 109 dB RMS unweighted, 113 dBA
    • Phone, As Cinch but:
      • Output: 6.3 mm TRS jack, unbalanced, stereo
      • Output impedance: 0.1 Ohm
      • Signal to Noise ratio (SNR) @ +22 dBu: 117 dB RMS unweighted, 120 dBA
      • Signal to Noise ratio (SNR) @ +7 dBu: 116 dB RMS unweighted, 119 dBA
      • Output level at 0 dBFS, High Power, load 100 Ohm or up: +22 dBu (10 V)
      • Output level at 0 dBFS, Low Power, load 8 Ohm or up: +7 dBu (1.73 V)
      • THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 %
      • THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 %
      • THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %
      • Max power @ 0.001% THD: 1.5 W per channel
    • IE, As Phones, but:
      • Output level at 0 dBFS: -3 dBu, 0.55 V
      • Signal to Noise ratio (SNR) @ -3 dBu: 115 dB RMS unweighted, 118 dBA
      • Max power, 8 Ohm, 0.001% THD: 40 mW per channel
  • Digital
    • Clocks: Internal, SPDIF In
    • Low Jitter Design: < 1 ns in PLL mode, all inputs
    • Internal clock: < 800 ps Jitter, Random Spread Spectrum
    • Jitter suppression of external clocks: > 50 dB (2.4 kHz)
    • Effective clock jitter influence on DA conversion: near zero
    • PLL ensures zero dropout, even at more than 100 ns jitter
    • Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
    • Supported sample rates for external clocks: 28 kHz up to 200 kHz
    • Internally supported sample rates: 44.1 kHz up to 768 kHz
  • General
    • Included power supply: external switching PSU, 100 - 240 V AC, 2 A, 24 Watts
    • Standby power consumption: 120 mW (10 mA)
    • Idle power consumption: 7 Watts, Max. power consumption: 18 Watts
    • Idle current at 12 V: 570 mA (6.8 Watts)
    • Dimensions (WxHxD): 215 x 52 x 150 mm (8.5" x 2.05" x 5.9")
    • Weight: 1.0 kg ( 2.2 lbs)
    • Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
    • Relative humidity: < 75%, non condensing
